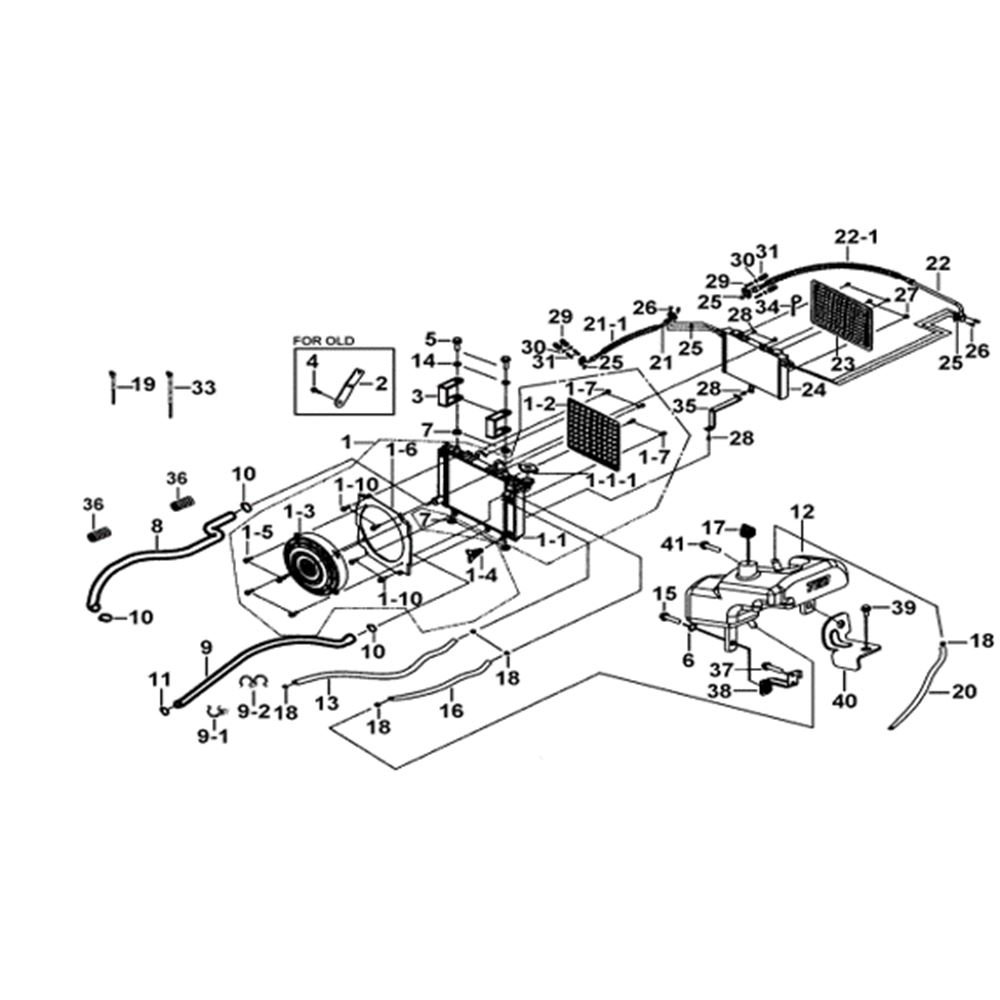

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 927087YA | RADIATOR ASSY. | 1 | £419.58 | Available in 14-21 days | ||
| 01-1 | 927087Y | RADIATOR COMP. | 1 | £221.76 | Available in 14-21 days | ||
| 01-1-1 | 924798Y | CAP, RADIATOR ASSY. | 1 | £25.06 | In Stock | ||
| 01-10 | S20611 | BOLT, HEX HEAD M6X20 | 4 | £0.29 | In Stock | ||
| 01-2 | 924670 | PROTECTOR, RADIATOR | 1 | £26.74 | In Stock | ||
| 01-3 | 924940 | COOLING FAN ASSY. | 1 | £176.74 | In Stock | ||
| 01-4 | 925435Y | TAP SCREW | 1 | £9.70 | In Stock | ||
| 01-5 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 4 | £0.29 | In Stock | ||
| 01-6 | D9900054 | COVER, COOLING FAN | 1 | £31.30 | Available in 14-21 days | ||
| 01-7 | S21605 | BOLT, FLANGE M6X10 | 4 | £0.24 | In Stock | ||
| 2 | 924638 | BRKT, RADIATOR (L) ?018506 | 1 | £3.74 | Available in 14-21 days | ||
| 3 | 924741 | BRACKET | 2 | £8.21 | Available in 14-21 days | ||
| 4 | S20814 | BOLT, FLANGE M8X1.25X20L | 1 | £1.06 | In Stock | ||
| 5 | S21008 | BOLT M10X20 | 2 | £2.11 | In Stock | ||
| 6 | W99806 | WASHER 8.5X16X2 - (FOR PLASTIC CARRIER) | 1 | £0.67 | Available in 14-21 days | ||
| 06A | W99005 | WASHER 2t | 1 | £0.43 | In Stock | ||
| 7 | 402129 | WASHER, RUBBER | 4 | £0.62 | In Stock | ||
| 8 | 926317 | HOSE, OUTLET | 1 | £57.36 | Available in 14-21 days | ||
| 9 | 924354-A | HOSE, INLET(INCLUDING CLAMP, CLIP) | 1 | £35.09 | Available in 14-21 days | ||
| 09-1 | 910844 | CLAMP | 1 | £1.01 | Available in 14-21 days | ||
| 09-2 | 928795 | CLIP | 1 | £2.45 | Available in 14-21 days | ||
| 10 | R66701 | CLIP | 3 | £5.52 | In Stock | ||
| 11 | R65603 | CLIP | 1 | £3.17 | Available in 14-21 days | ||
| 12 | 926286-S | RESERVOIR ASSY.(INCLUDING RELATED COMPONENTS) ?018506 | 1 | £59.90 | Available in 14-21 days | ||
| 12A | 926286 | RESERVOIR ASSY. 018507? | 1 | £34.27 | Available in 14-21 days | ||
| 13 | 924681 | HOSE, RECIRCULATION | 1 | £7.01 | In Stock | ||
| 14 | W99010 | WASHER 10.5X22X3.5t | 2 | £0.82 | Available in 14-21 days | ||
| 15 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 2 | £0.29 | In Stock | ||
| 15A | S20814 | BOLT, FLANGE M8X1.25X20L | 1 | £1.06 | In Stock | ||
| 16 | 925175 | HOSE | 1 | £10.42 | In Stock | ||
| 17 | 924642 | RESERVOIR CAP | 1 | £1.44 | Available in 14-21 days | ||
| 18 | R40201 | CLIP | 5 | £0.72 | In Stock | ||
| 19 | 518739 | CLAMP L200 | 2 | £0.24 | In Stock | ||
| 20 | 925265 | HOSE | 1 | £10.90 | In Stock | ||
| 21 | 926293Y | PIPE , ENGINE OIL(L) L 975mm | 1 | £135.07 | Available in 14-21 days | ||
| 21-1 | 927263Y | PROTECTION TUBE (L)(835mm) | 1 | £12.00 | Available in 14-21 days | ||
| 22 | 927424Y | PIPE , ENGINE OIL(R) L 1095mm | 1 | £141.12 | Available in 14-21 days | ||
| 22-1 | 927264Y | PROTECTION TUBE (R)(955mm) | 1 | £13.92 | Available in 14-21 days | ||
| 23 | 925082 | PROTECTOR, OIL RADIATOR | 1 | £30.05 | Available in 14-21 days | ||
| 24 | 924722Y | OIL RADIATOR ASSY. | 1 | £170.70 | Available in 14-21 days | ||
| 25 | 926278 | GASKET | 4 | £6.00 | Available in 14-21 days | ||
| 26 | S70609 | SCREW, SOCKET HEAD M6x16 | 4 | £0.24 | In Stock | ||
| 27 | S21605 | BOLT, FLANGE M6X10 | 4 | £0.24 | In Stock | ||
| 28 | S20603 | BOLT, FLANGE M6X12 | 4 | £0.67 | Available in 14-21 days | ||
| 29 | S95602 | STUD M6X29 | 4 | £0.67 | In Stock | ||
| 30 | GA504WS04 | WASHER, SPRING 6*12*1.5 | 4 | £0.48 | In Stock | ||
| 31 | N10605 | NUT | 4 | £2.69 | In Stock | ||
| 33 | 518740 | CLAMP L300 | 2 | £0.29 | Available in 14-21 days | ||
| 34 | 925350 | CLIP ? P ? | 1 | £8.06 | Available in 14-21 days | ||
| 35 | 925085 | BRACKET | 1 | £19.10 | Available in 14-21 days | ||
| 36 | 926230 | PROTECTION TUBE, HOSE(12cm) | 2 | £4.46 | Available in 14-21 days | ||
| 37 | S20611 | BOLT, HEX HEAD M6X20 | 1 | £0.29 | In Stock | ||
| 38 | 910481 | BRACKET(FRONT) | 1 | £11.42 | Available in 14-21 days | ||
| 39 | S20603 | BOLT, FLANGE M6X12 | 1 | £0.67 | Available in 14-21 days | ||
| 40 | 926290 | BRACKET, RESERVOIR | 1 | £11.71 | Available in 14-21 days | ||
| 41 | S25602 | BOLT M6X16L | 1 | £0.82 | In Stock |
