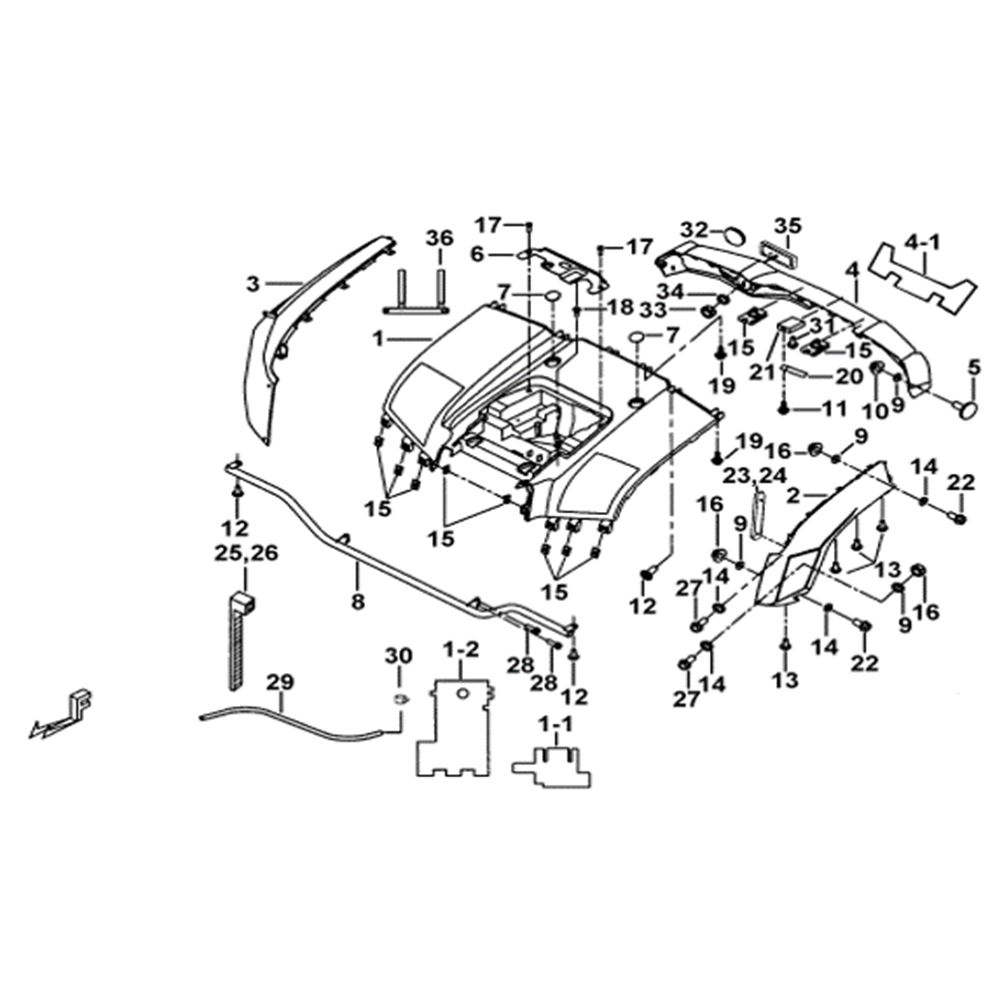

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 514498X | REAR BODY COVER COMP.(INCLUDING HEAT INSULATION) | 1 | £360.00 | Available in 14-21 days | ||
| 01-1 | 518014R | HEAT INSULATION | 1 | £18.72 | Available in 14-21 days | ||
| 01-2 | 518011R | HEAT INSULATION | 1 | £73.82 | Available in 14-21 days | ||
| 2 | 514493 | REAR FENDER SIDE RAIL, LH. | 1 | £25.44 | In Stock | ||
| 3 | 514494 | REAR FENDER SIDE RAIL, RH. | 1 | £25.44 | Available in 14-21 days | ||
| 4 | 514553E | REAR BUMPER | 1 | £133.06 | Available in 14-21 days | ||
| 04-1 | 518028 | HEAT INSULATION | 1 | £13.10 | Available in 14-21 days | ||
| 5 | 518007 | REFLECTOR ASSY., SIDE(REAR)(RED) | 2 | £4.70 | Available in 14-21 days | ||
| 6 | 518020 | BATTERY FIXED(PLATE) | 1 | £33.84 | Available in 14-21 days | ||
| 7 | 512425 | CARRIER COVER | 2 | £11.52 | Available in 14-21 days | ||
| 8 | 518031 | BRKT, REAR BODY COVER | 1 | £60.19 | Available in 14-21 days | ||
| 9 | W99605 | WASHER M6 | 8 | £0.24 | In Stock | ||
| 10 | N20602 | NUT, LOCK | 2 | £0.29 | In Stock | ||
| 11 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 3 | £0.29 | In Stock | ||
| 12 | S57501 | SCREW,OVAL HEAD, FLANGE M5X16 | 4 | £0.29 | In Stock | ||
| 13 | S50401 | SCREW TAPPING M4X12 | 8 | £0.29 | In Stock | ||
| 14 | GA555WS02 | WASHER 6X16X1.5 | 8 | £0.19 | Available in 14-21 days | ||
| 15 | N32601 | NUT, SPRING | 12 | £0.82 | Available in 14-21 days | ||
| 16 | N10603 | NUT M6 | 6 | £0.19 | In Stock | ||
| 17 | S20814 | BOLT, FLANGE M8X1.25X20L | 2 | £1.06 | In Stock | ||
| 18 | S25602 | BOLT M6X16L | 1 | £0.82 | In Stock | ||
| 19 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 4 | £0.86 | In Stock | ||
| 20 | 514410 | CLAMP | 3 | £1.06 | In Stock | ||
| 21 | 514411 | CONNECTOR | 2 | £1.63 | Available in 14-21 days | ||
| 22 | S72605 | BOLT, HEX HEAD M6X16 (Silver White) | 4 | £0.96 | Available in 14-21 days | ||
| 23 | 512466 | PLATE (LH.) | 1 | £8.50 | Available in 14-21 days | ||
| 24 | 512467 | PLATE (RH.) | 1 | £8.50 | Available in 14-21 days | ||
| 25 | 518739 | CLAMP L200 | 1 | £0.24 | In Stock | ||
| 26 | 518739 | CLAMP L200 | 4 | £0.24 | In Stock | ||
| 27 | S72601 | BOLT, HEX HEAD M6X20 | 4 | £0.62 | In Stock | ||
| 28 | S20611 | BOLT, HEX HEAD M6X20 | 4 | £0.29 | In Stock | ||
| 29 | 514467 | DRAIN HOSE | 1 | £22.27 | Available in 14-21 days | ||
| 30 | R40002 | CLIP | 1 | £4.03 | In Stock | ||
| 31 | S50402 | SCREW,TAPPING M4X10 | 2 | £0.29 | In Stock | ||
| 32 | 518029 | RUBBER PLUG | 1 | £13.92 | Available in 14-21 days | ||
| 33 | N20502 | NUT, SELFLOCK | 2 | £3.31 | In Stock | ||
| 34 | GA552WS05 | WASHER 5.2X10X0.8 | 2 | £0.24 | In Stock | ||
| 35 | 458015 | REFLECTOR ASSY., REAR(RED) | 2 | £4.75 | Available in 14-21 days | ||
| 36 | 518030 | BRACKET | 1 | £14.26 | Available in 14-21 days |
