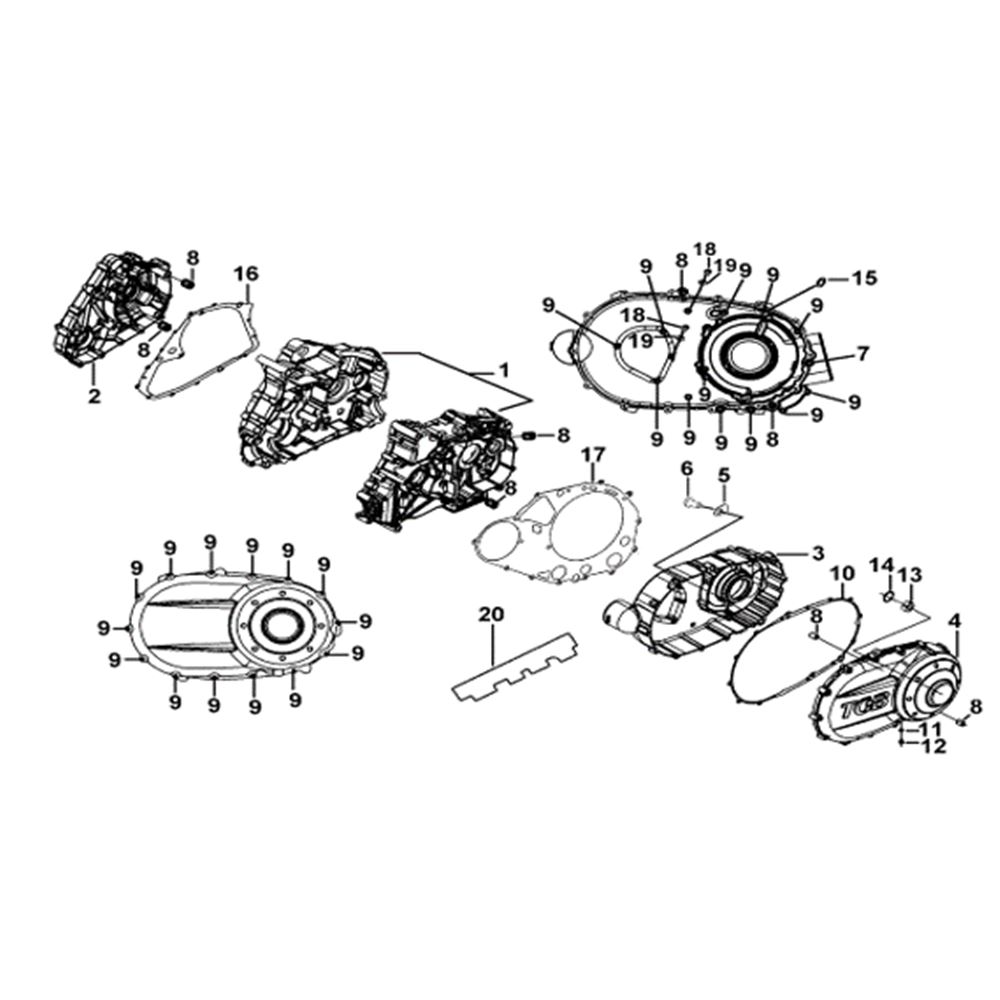

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 926266-S1 | CRANKCASE(INCLUDING SCREW, WASHER) - ?010008 | 1 | £385.56 | Available in 14-21 days | ||
| 01A | 926266-S | CRANKCASE(INCLUDING SCREW, WASHER ) | 1 | £385.56 | Available in 14-21 days | ||
| 02 | 927322 | COVER , CRANKCASE LH | 1 | £221.76 | Available in 14-21 days | ||
| 03 | 927060 | COVER , CRANKCASE RH | 1 | £223.87 | Available in 14-21 days | ||
| 04 | 925465 | CLUTCH COVER | 1 | £116.06 | Available in 14-21 days | ||
| 05 | 924185 | CHUCK, BEARING | 2 | £0.67 | In Stock | ||
| 06 | S46603 | SCREW M6XP1.0X12 | 2 | £0.48 | In Stock | ||
| 07 | S24627 | BOLT, FLANGEM6X74L | 1 | £0.82 | In Stock | ||
| 08 | P40301 | PIN, DOWEL | 6 | £0.96 | Available in 14-21 days | ||
| 09 | S24610 | BOLT, FLANGE M6X40 | 26 | £0.67 | In Stock | ||
| 10 | 924051 | GASKET, CLUTCH COVER | 1 | £17.76 | Available in 14-21 days | ||
| 11 | W99821 | WASHER | 1 | £0.29 | In Stock | ||
| 12 | GA504SC12 | BOLT, FLANGE M8X12 | 1 | £0.58 | Available in 14-21 days | ||
| 13 | 924166 | BEARING 12X32X10 | 1 | £10.42 | In Stock | ||
| 14 | R01901 | " C " RING | 1 | £1.25 | In Stock | ||
| 15 | 925115 | WASHER 6X12.5X1.15t | 1 | £0.82 | Available in 14-21 days | ||
| 16 | 924055 | GASKET | 1 | £17.04 | Available in 14-21 days | ||
| 17 | 924808 | GASKET | 1 | £22.18 | Available in 14-21 days | ||
| 18 | S24626 | BOLT, FLANGE M6X48 | 2 | £0.58 | Available in 14-21 days | ||
| 19 | GA504WS04 | WASHER, SPRING 6*12*1.5 | 2 | £0.48 | In Stock | ||
| 20 | 927034 | HEAT INSULATION | 1 | £12.53 | Available in 14-21 days |
