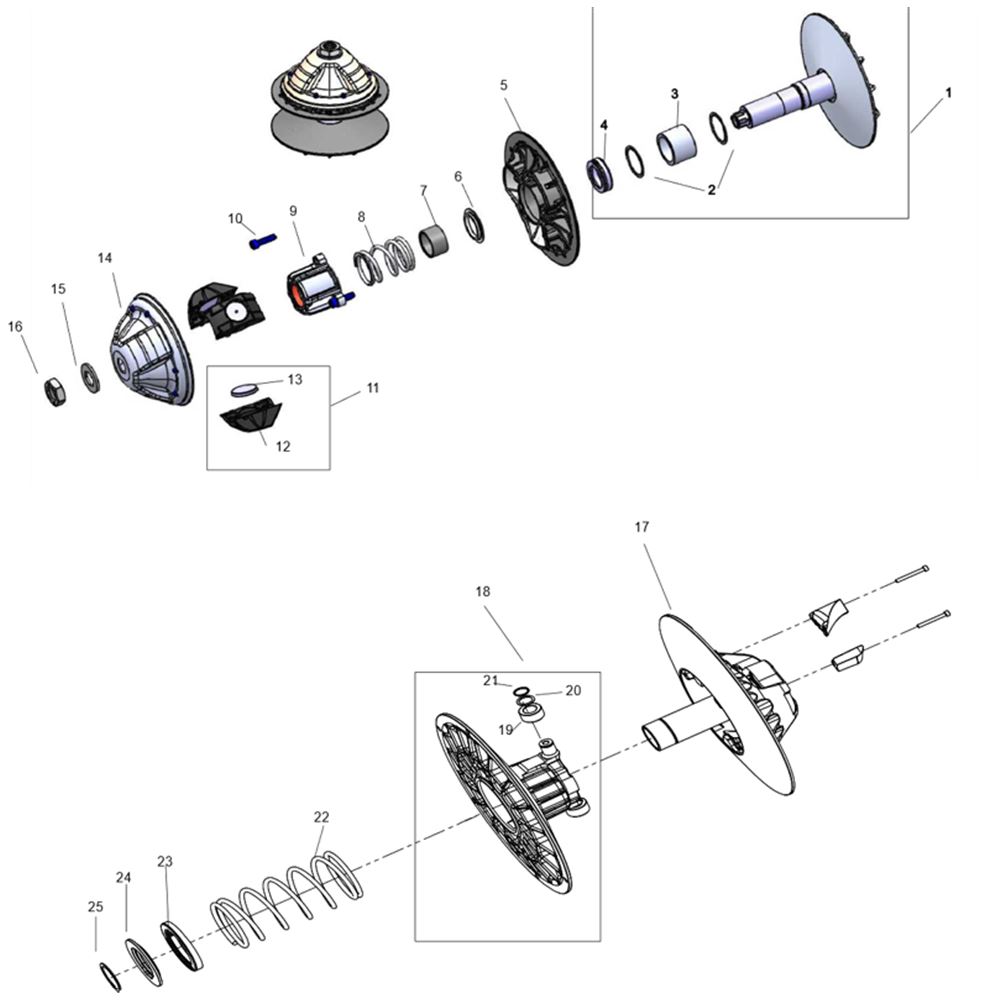

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | E02-E101000-000-00 | FIXED DISC | 1 | £502.15 | Available in 14-21 days | ||
| 2 | E02-E101001-000-00 | GASKET | 2 | £9.65 | Available in 14-21 days | ||
| 3 | E02-E101002-000-00 | BEARING | 1 | £113.18 | Available in 14-21 days | ||
| 4 | E02-E101003-000-00 | SPRING BEARING GASKET | 1 | £114.96 | Available in 14-21 days | ||
| 5 | E02-E102001-000-00 | ROTATING DISC | 1 | £167.82 | Available in 14-21 days | ||
| 6 | E02-E102002-000-00 | SPRING SEAT | 1 | £10.32 | Available in 14-21 days | ||
| 7 | E02-E102003-000-00 | SPEED LIMITING WASHER | 1 | £69.07 | Available in 14-21 days | ||
| 8 | E02-E102004-000-00 | SPRING (200-900N) | 1 | £73.30 | Available in 14-21 days | ||
| 9 | E02-E102005-000-00 | SPRING COVER | 1 | £196.46 | Available in 14-21 days | ||
| 10 | E02-E102006-000-00 | BOLT | 3 | £10.18 | Available in 14-21 days | ||
| 12 | E02-E103001-000-00 | HOUSING | 3 | £71.81 | Available in 14-21 days | ||
| 13 | E02-E103003-000-00 | COUNTERWEIGHT (52.6G) | 3 | £11.66 | Available in 14-21 days | ||
| 14 | E02-E102007-000-00 | THRUST DISC | 1 | £345.10 | Available in 14-21 days | ||
| 15 | E02-E102008-000-00 | WASHER | 1 | £8.78 | Available in 14-21 days | ||
| 16 | E02-E102009-000-00 | NUT (LEFT-HAND ROTATION) | 1 | £20.64 | Available in 14-21 days | ||
| 17 | E02-E201000-000-00 | FIXED DISC | 1 | £346.38 | Available in 14-21 days | ||
| 18 | E02-E202000-000-00 | ROTATING DISC | 1 | £868.49 | Available in 14-21 days | ||
| 19 | E02-E202001-000-00 | BALL | 2 | £112.13 | Available in 14-21 days | ||
| 20 | E02-E202002-000-00 | WASHER | 2 | £2.02 | Available in 14-21 days | ||
| 21 | E02-E202003-000-00 | OUTER LOCKING RING | 2 | £8.78 | Available in 14-21 days | ||
| 22 | E02-E203001-000-00 | SPRING (1200-1481N) | 1 | £73.30 | Available in 14-21 days | ||
| 23 | E02-E203002-000-00 | SPRING SEAT | 1 | £52.70 | Available in 14-21 days | ||
| 24 | E02-E203003-000-00 | SPRING SUPPORT | 1 | £28.32 | Available in 14-21 days | ||
| 25 | E02-E203004-000-00 | OUTER LOCKING RING | 1 | £8.78 | Available in 14-21 days | ||
| 26 | E02-E203005-000-00 | FRONT SLIDEWAY | 2 | £24.00 | Available in 14-21 days | ||
| 27 | E02-E203006-000-00 | REAR SLIDEWAY | 2 | £23.38 | Available in 14-21 days | ||
| 28 | E02-E203007-000-00 | BOLT | 4 | £3.31 | Available in 14-21 days |
