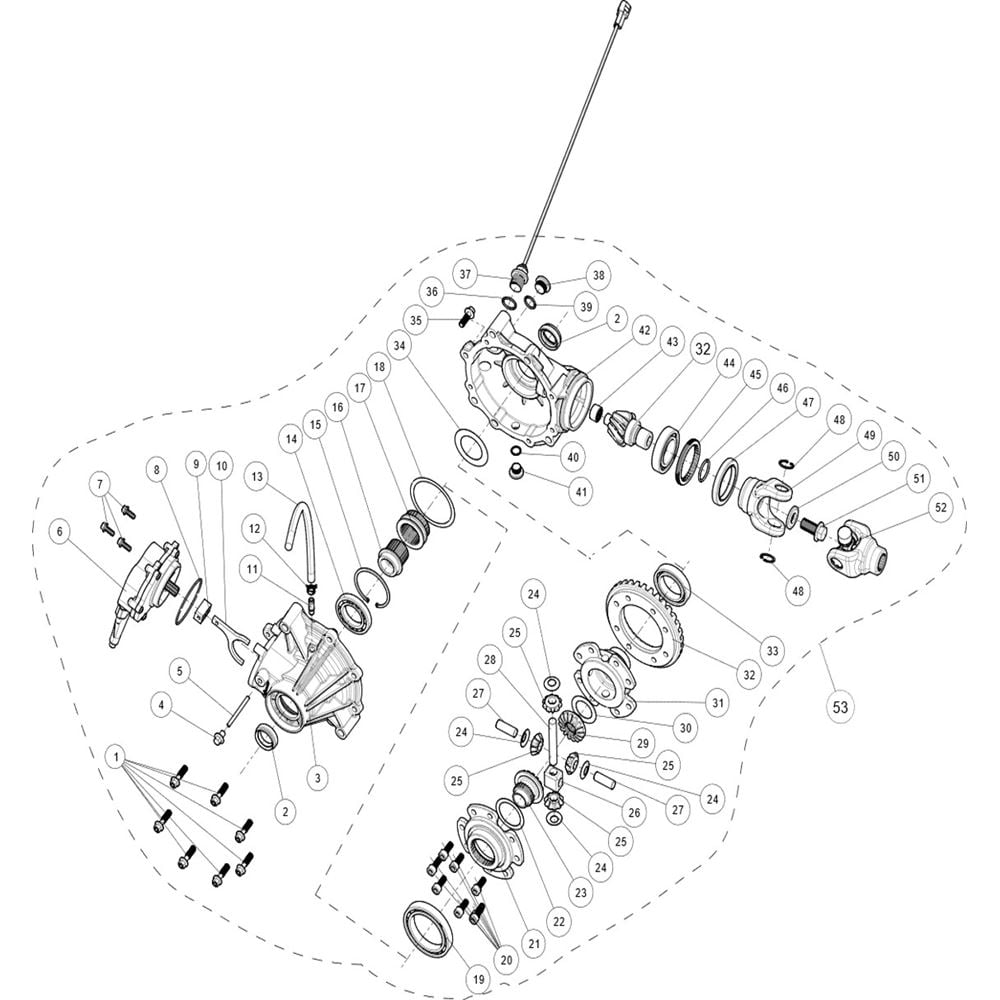

Front Axle Diff
Front Axle Diff
Front Axle Diff

Front Axle Diff

Spare Parts » Segway AT5 S » Engine Parts » Front Axle Diff
Image RefPart CodeItem NameFitted QtyPriceOrder QtyStock
1F01000015001BOLT M8�307£0.67
Available in 14-21 days
2Q02F00003001OIL SEAL 24�38�82£4.32
Available in 14-21 days
3Q02-F401000-000-00FRONT AXLE BOX COVER1£56.21
Available in 14-21 days
4Q02-F401002-000-00BOLT M8�� 121£0.29
Available in 14-21 days
5Q02-F301014-000-00SHIFT FORK SHAFT1£1.06
Available in 14-21 days
6Q03F50100001FRONT AXLE SHIFT MOTOR ASSEMBLY1£115.01
Available in 14-21 days
7F01000002001BOLT M6�163£0.34
In Stock
8Q03F40300001O-RING 67.9�2.21£0.77
Available in 14-21 days
9Q02-F301015-000-00SLIDING RACK1£4.08
Available in 14-21 days
10Q02-F301013-000-00SHIFT FORK1£6.38
Available in 14-21 days
11Q02F04103001AIR TAP1£2.50
Available in 14-21 days
12QCT006211003CLAMP 111£0.24
Available in 14-21 days
13Q02F00005001PIPE 6001£5.38
Available in 14-21 days
14GBT000276036BEARING 160071£8.50
Available in 14-21 days
15GBT000893008CIRCLIP 621£0.86
Available in 14-21 days
16Q02-F301012-000-00OUTPUT SLEEVE1£17.52
Available in 14-21 days
17Q02-F301011-000-00COMBINATION SLEEVE1£20.98
Available in 14-21 days
18Q02F20007001WASHER1£0.48
Available in 14-21 days
19GBT000276035BEARING 619121£30.19
Available in 14-21 days
20GBT000701041SCREWS M8�208 £0.29
Available in 14-21 days
21Q02-F301001-000-00DIFFERENTIAL COVER1£17.76
Available in 14-21 days
22Q02-F301010-000-00LEFT HALF SHAFT GEAR GASKET1£0.53
Available in 14-21 days
23Q02-F301004-000-00LEFT HALF SHAFT BEVEL GEAR1£10.13
Available in 14-21 days
24Q02-F301008-000-00PLANETARY GEAR GASKET4£0.43
Available in 14-21 days
25Q02-F301002-000-00PLANETARY GEAR4£5.23
Available in 14-21 days
26Q02-F301007-000-00PLANETARY SHAFT CARRIER1£5.23
Available in 14-21 days
27Q02-F301005-000-00PLANETARY GEAR SHAFT I2£3.60
Available in 14-21 days
28Q02-F301006-000-00PLANETARY GEAR SHAFT II1£3.60
Available in 14-21 days
29Q02-F301003-000-00RIGHT HALF SHAFT BEVEL GEAR1£9.98
Available in 14-21 days
30Q02-F301009-000-00RIGHT HALF SHAFT GEAR GASKET1£0.62
Available in 14-21 days
31Q02-F301000-000-00DIFFERENTIAL HOUSING1£29.66
Available in 14-21 days
32Q02-F102000-000-00DRIVE AND DRIVEN BEVEL GEAR(450)1£119.52
Available in 14-21 days
33BG002760-61908-001BEARING 619081£7.87
Available in 14-21 days
34Q02F20003001BEVEL GEAR ADJUSTING WASHER1£0.29
Available in 14-21 days
35Q01F40201001HEXAGON FLANGE BOLT M8�251£0.62
Available in 14-21 days
36Q02F00007001O-RING 19.4�2.31£0.10
Available in 14-21 days
37Q01F50300002VEHICLE SPEED SENSOR1£32.50
In Stock
38Q02F00008001PLUG M18�1.51£1.82
Available in 14-21 days
39Q02F00009001O-RING 16.4�2.51£0.34
Available in 14-21 days
40Q02F00006001O-RING 13�1.51£0.10
In Stock
41Q02F00014001PLUG M14�1.5�111£4.03
Available in 14-21 days
42Q02-F401001-000-00FRONT AXLE BOX1£60.38
Available in 14-21 days
43Q02F40202001NEEDLE BEARING HK1521121£2.78
Available in 14-21 days
44GBT000276037BEARING 60071£8.69
Available in 14-21 days
45Q02-F401004-000-00NUT M64�� 1.51£8.74
Available in 14-21 days
46Q02-F101001-000-00O-RING 26�� 2.71£0.91
Available in 14-21 days
47Q02F00004001OIL SEAL 48�65�91£6.96
Available in 14-21 days
48BG008930-22000-F01CIRCLIP 222£0.38
Available in 14-21 days
49Q02-F101002-000-00UNIVERSAL JOINT FORK 11£37.58
Available in 14-21 days
50Q02-R101007-000-00WASHER ?14.5�?35.2�41£1.68
Available in 14-21 days
51Q02-R101025-000-00BOLT M14 �1.5 � 301£2.16
Available in 14-21 days
52Q02-R101027-000-00UNIVERSAL JOINT FORK 21£38.69
Available in 14-21 days
53Q02-F000000-000-00450 FRONT AXLE ASSEMBLY1£511.75
Available in 14-21 days
