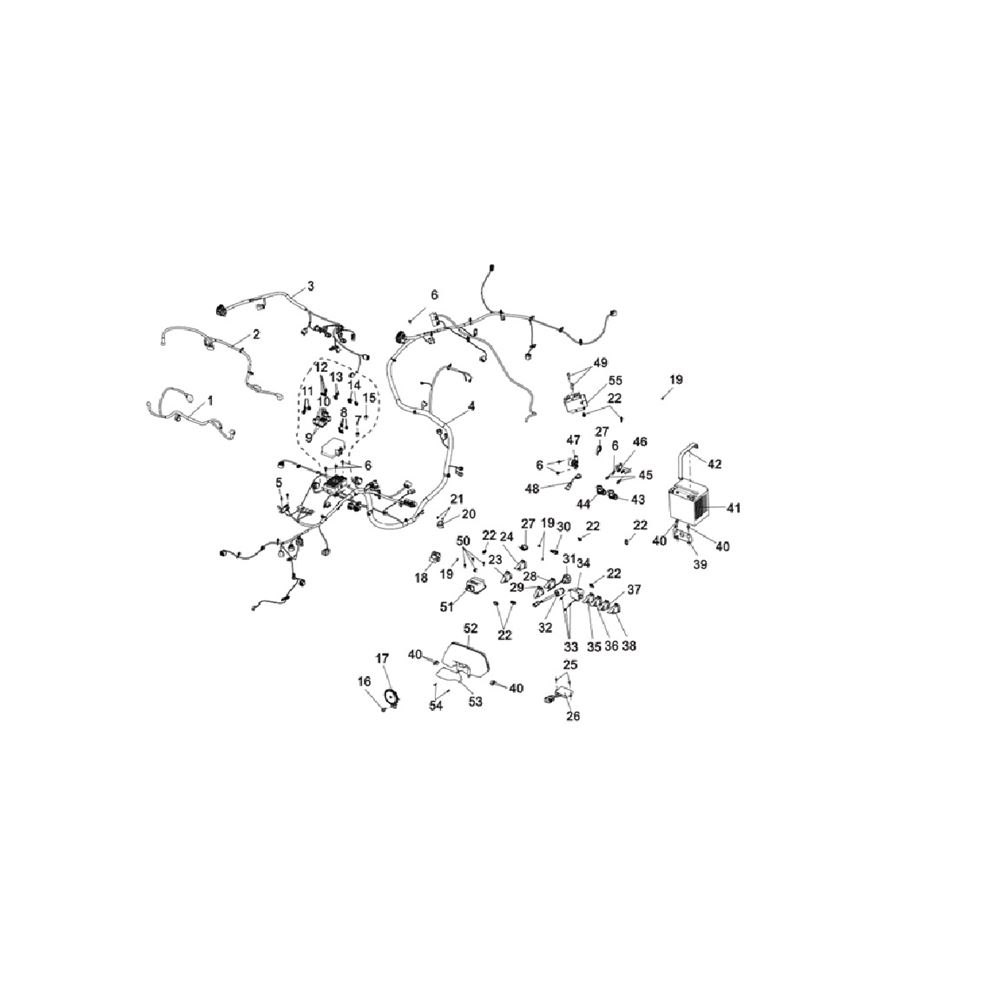

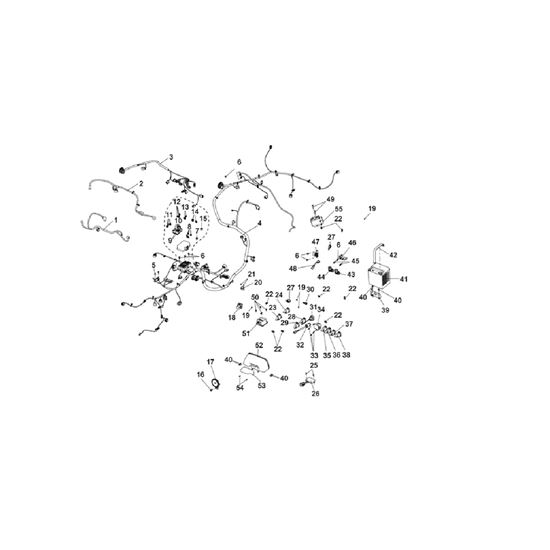

Spare Parts » Segway Villain SX10 X » Electrical Parts » ELECTRICAL ASSEMBLY
Image RefPart CodeItem NameFitted QtyPriceOrder QtyStock
1S03M14100001STARTING MOTOR WIRE1£47.52
Available in 14-21 days
2S03M14600001BATTERY POSITIVE AND NEGATIVE WIRE1£57.94
Available in 14-21 days
3S05M12100001EFI AUXILIARY CABLE1£230.02
Available in 14-21 days
4S05M11100001MAIN CABLE1£468.83
Available in 14-21 days
5GBT005789001HEXAGON SOCKET PAN HEAD SCREW M5�122£0.29
Available in 14-21 days
6GBT005789006HEXAGON FLANGE BOLT M6�127£0.14
Available in 14-21 days
7T10100001007FUSE PROTECTOR 40A1£1.49
Available in 14-21 days
8T10100001002MINI-FUSE7.5A6£0.19
Available in 14-21 days
9T10100001018Normally closed relay2£4.27
In Stock
10T10100001016relay9£4.18
In Stock
11T10100001003mini-fuse10A6£0.19
Available in 14-21 days
12T10100001004mini-fuse15A4£0.19
Available in 14-21 days
13T10100001014CLIP FUSE 20A2£0.19
Available in 14-21 days
14T10100001013fuse15A3£0.19
Available in 14-21 days
15T10100001008slow-fuse50A1£1.25
In Stock
16GBT005789014HEXAGON FLANGE BOLT M8�161£0.19
In Stock
17U01M02200001HORN1£7.68
Available in 14-21 days
18S01-M041000-000-00FLASHER1£33.26
In Stock
19T05000001007RIBBON 2�1204£0.05
Available in 14-21 days
20U01M33000001BUZZER 1£29.18
In Stock
21GBT000845003SCREW ST2.9�132£4.90
Available in 14-21 days
22T05000001004POSITIONING TIE ?7�1808£0.38
Available in 14-21 days
23S01M51600001IGNITION OFF SWITCH1£9.70
Available in 14-21 days
24S01M51400001EMERGENCY SWITCH1£9.70
Available in 14-21 days
25GBT000845014CROSS RECESSED HEXAGON SCREW ST4.8�162£0.10
Available in 14-21 days
26S03M31100001INSTRUMENT CONTROL MODULE2£184.03
Available in 14-21 days
27T05000001006RIBBON 5�2502£0.10
Available in 14-21 days
28S01M51800001MODE SWITCH1£13.06
Available in 14-21 days
29S01M51700001HORN SWITCH1£12.29
Available in 14-21 days
30S01M51900001INTERCOM SWITCH1£14.88
Available in 14-21 days
31U01M56000001STAR BUTTON ASSY1£48.34
Available in 14-21 days
32U09M57000001POWER LOCK SET1£26.02
Available in 14-21 days
33GBT000845009SCREW ST4.2�133£0.05
Available in 14-21 days
34U01M55000002TWO-FOUR-WHEEL DRIVE INTEGRATED SWITCH1£25.49
Available in 14-21 days
35S01M51100001HEADLIGHT SWITCH1£10.94
Available in 14-21 days
36S01M51500001RELEASE SWITCH1£13.30
Available in 14-21 days
37S01M51300001TURN SIGNAL SWITCH1£10.46
Available in 14-21 days
38S01M51200001HIGH BEAM SWITCH1£10.46
Available in 14-21 days
39S01C03600002BATTERY BAFFLE ASSEMBLY1£5.86
Available in 14-21 days
40T03000007002HEXAGON SOCKET MUSHROOM HEAD SCREW6£0.29
Available in 14-21 days
41A01M04500001BATTERY 32AH1£161.74
In Stock
42S03H20200001BATTERY PULL STRAP1£3.17
Available in 14-21 days
43U01M04300001USB POWER OUTPUT1£17.52
Available in 14-21 days
44U01M04200001U01 12V POWER OUTPUT SEAT1£16.08
Available in 14-21 days
45GBT005789008BOLT M6�202£1.01
In Stock
46U01M04400001WIRING TERMINAL1£5.52
Available in 14-21 days
47A01M04200001STARTING RELAY1£6.58
In Stock
48A01M52300001REAR FOG LIGHT SWITCH1£9.65
Available in 14-21 days
49GBT005789011HEXAGON FLANGE BOLT M6�352£0.14
Available in 14-21 days
50GBT000818005CROSS RECESSED HEXAGON BOLTS M5�164£0.05
Available in 14-21 days
51S01M34000001T-BOX?EU?1£299.54
In Stock
51S01M34000002T-Box(North America?1£208.62
Available in 14-21 days
51S01M34000003T-BOX(MEXICO)1£211.54
Available in 14-21 days
51S01M34000004T-BOX(AUSTRALIA,SOUTH AMERICA)1£268.06
Available in 14-21 days
51S01M34000005T-BOX(JAPAN)1£268.06
Available in 14-21 days
51S01M34000006T-BOX(KOREA)1£268.06
Available in 14-21 days
51S01M34000007T-BOX(CHINA.INDIA)1£268.06
Available in 14-21 days
52S05M31000001DASHBOARD1£438.50
Available in 14-21 days
53S01H17400001INSTRUMENT CABLE GUARD1£1.54
Available in 14-21 days
54GBT000845010SCREW ST4.2�161£0.05
Available in 14-21 days
55A01M04300001RECTIFIER2£136.85
In Stock
