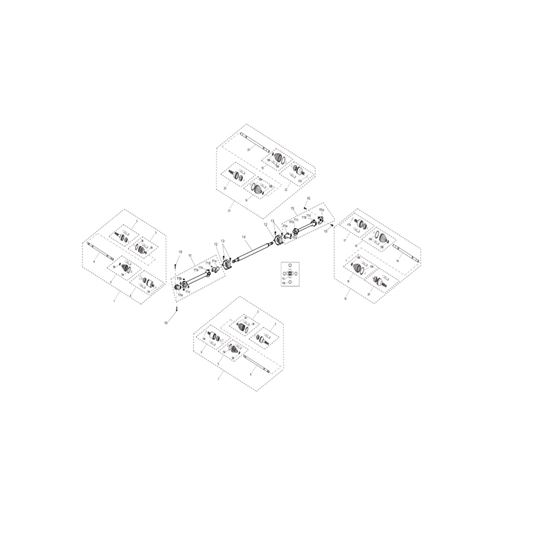

Spare Parts » Segway Villain SX10 X » Engine Parts » TRANSMISSION SYSTEM ASSEMBLY
Image RefPart CodeItem NameFitted QtyPriceOrder QtyStock
1S01P12000001FR CV DRIVE SHAFT ASSEMBLY_NARROW1£184.66
Available in 14-21 days
2S01P11002001FL&FR OUTER CV BOOT ASSEMBLY2£76.80
Available in 14-21 days
3S01P11005001FL&FR OUTER CV BOOT DUST COVER ASSEMBLY2£26.88
Available in 14-21 days
3aU01P11004001SMALL CLAMPING BAND2£1.34
Available in 14-21 days
3bU01P11002001BIG CLAMPING BAND2£2.59
Available in 14-21 days
4S01P12002001FRONT RIGHT MIDDLE SHAFT1£46.08
Available in 14-21 days
5S01P11004001FL&FR INNER CV BOOT DUST COVER ASSEMBLY2£26.88
Available in 14-21 days
5aU01P11008001BIG CLAMPING BAND2£1.78
Available in 14-21 days
5bU01P11006001SMALL CLAMPING BAND2£1.34
Available in 14-21 days
6S01P12001001FRONT RIGHT INNER CV BOOT ASSEMBLY1£72.96
Available in 14-21 days
6aU01P11011001CIRCLIP2£1.34
Available in 14-21 days
7S01P11000001FL CV DRIVE SHAFT ASSEMBLY_NARROW1£185.18
Available in 14-21 days
8S01P11003001FRONT LEFT MIDDLE SHAFT1£46.08
Available in 14-21 days
9S01P11001001FRONT LEFT INNER CV BOOT ASSEMBLY1£72.96
Available in 14-21 days
10A03F11001101BOLT M8�354£0.48
Available in 14-21 days
11S03P21100002FRONT DRIVE SHAFT FRONT SECTION ASSEMBLY1£172.13
Available in 14-21 days
11aU01P21101001TRANSMISSION SHAFT MOUNTING SPLINE FORK2£36.62
Available in 14-21 days
11bGBT000893007CIRCLIP 2516£1.49
Available in 14-21 days
11cU01P22010001UNIVERRSAL CROSS SHAFT ASSY4£28.27
Available in 14-21 days
11dGBT001152001FUEL CUP M62£0.24
Available in 14-21 days
11eU09P21301001TRANSMISSION SHAFT SLIDING SPLINE FORK2£42.34
Available in 14-21 days
12U01P21400001INTERMEDIATE SUPPORT SEAT2£41.62
Available in 14-21 days
13GBT005789026BOLT M10�1.25�254£0.38
Available in 14-21 days
14S03P21200002FRONT DRIVE SHAFT MIDDLE SECTION ASSY1£76.51
Available in 14-21 days
15S05P21300002DRIVE SHAFT REAR SECTION COMPONENTS1£170.06
Available in 14-21 days
16S05P14000001RL CV DRIVE SHAFT ASSY(NARROW VERSION)1£227.42
Available in 14-21 days
17S05P14001001REAR LEFT INNER CV BOOT ASSEMBLY1£92.16
Available in 14-21 days
17aU09P13006001CIRCLIP4£1.34
Available in 14-21 days
18S05P13003001RL&RR CV BOOT DUST COVER ASSEMBLY4£26.88
Available in 14-21 days
18aU09P13002001BIG CLAMPING BAND4£1.78
Available in 14-21 days
18bU09P13004001SMALL CLAMPING BAND4£1.34
Available in 14-21 days
19S05P14003001REAR LEFT MIDDLE SHAFT_NARROW1£53.76
Available in 14-21 days
20S05P14002001RL&RL OUTER CV BOOT ASSEMBLY2£96.00
Available in 14-21 days
21S05P13000001RR CV DRIVE SHAFT ASSY(NARROW VERSION)1£229.49
Available in 14-21 days
22S05P13001001REAR RIGHT INNER CV BOOT ASSEMBLY1£92.16
Available in 14-21 days
23S05P13002001REAR RIGHT MIDDLE SHAFT_NARROW1£53.76
Available in 14-21 days
