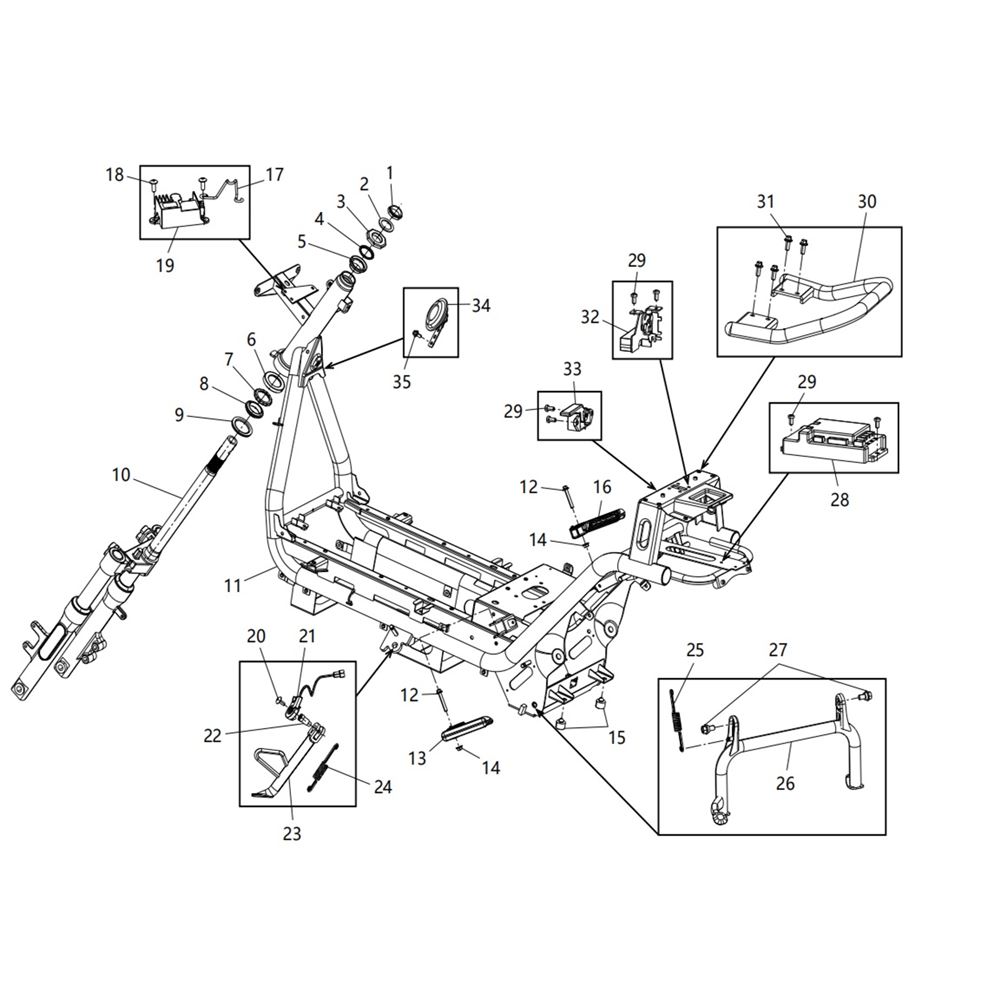

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | CA.00.0008.30 | Lock nut - M25 � 1.8 | 1 | £1.25 | Available in 14-21 days | ||
| 2 | CA.50.0005.92 | Check washer | 1 | £0.58 | Available in 14-21 days | ||
| 3 | CA.00.0008.29 | Upper shaft ring-M25 � 1 | 1 | £4.03 | Available in 14-21 days | ||
| 4 | 01.17.0017.00 | Upper holder | 1 | £0.72 | Available in 14-21 days | ||
| 5 | 01.17.0012.00 | Upper seat ring | 1 | £2.78 | Available in 14-21 days | ||
| 6 | 01.17.0014.00 | lower roller holder | 1 | £2.64 | Available in 14-21 days | ||
| 7 | 01.17.0018.00 | lower roller | 1 | £1.06 | Available in 14-21 days | ||
| 8 | 01.17.0013.00 | lower axle circle | 1 | £2.59 | Available in 14-21 days | ||
| 9 | 01.17.0019.00 | dust proof seal | 1 | £0.43 | Available in 14-21 days | ||
| 10 | BB.00.0009.87 | Front fork assembly | 1 | £159.70 | Available in 14-21 days | ||
| 11 | BB.00.0009.86 | Frame assembly | 1 | £199.62 | Available in 14-21 days | ||
| 12 | 01.12.4934.00 | Hexagon flange bolt M6 � 40 | 2 | £0.19 | Available in 14-21 days | ||
| 13 | 05.03.0000.00 | Left foot peg | 1 | £15.31 | Available in 14-21 days | ||
| 14 | 01.12.4990.00 | Hexagon flange self-locking nut M6 | 2 | £0.14 | Available in 14-21 days | ||
| 15 | CB.50.0006.55 | Central stand retaining rubber | 2 | £0.62 | Available in 14-21 days | ||
| 16 | 05.03.0001.00 | Right foot peg | 1 | £15.31 | Available in 14-21 days | ||
| 17 | CA.00.0008.65 | dragline clip K024P0394-A0 | 1 | £0.96 | Available in 14-21 days | ||
| 18 | CC.00.0001.25 | cross groove medium flat head screw M6x16 13.5 | 2 | £0.19 | Available in 14-21 days | ||
| 19 | BA.00.0005.62 | converter | 1 | £30.67 | Available in 14-21 days | ||
| 20 | 01.12.4875.00 | cross groove flat head screw M6x16 16 | 1 | £0.14 | Available in 14-21 days | ||
| 21 | 05.10.0009.00 | Electronic side support switch | 1 | £15.31 | Available in 14-21 days | ||
| 22 | 01.12.4878.00 | Hexagon step bolt_ M10 � 1.25-22.5/ ? 12-14.5 | 1 | £1.06 | Available in 14-21 days | ||
| 23 | 05.02.0003.00 | side stand | 1 | £12.77 | Available in 14-21 days | ||
| 24 | CA.00.0008.21 | Side brace double spring | 1 | £1.68 | Available in 14-21 days | ||
| 25 | CA.00.0008.20 | Middle support double spring | 1 | £1.82 | Available in 14-21 days | ||
| 26 | CA.00.0008.24 | Middle brace | 1 | £34.08 | Available in 14-21 days | ||
| 27 | 01.12.4877.00 | hexagon flange bolt M10x1.25-19 15-6 | 2 | £0.91 | Available in 14-21 days | ||
| 28 | BA.00.0006.53 | controller-E110SE-45km/h | 1 | £0.00 | Available in 14-21 days | ||
| 28a | BA.00.0006.65 | controller-E110SE-25km/h | 1 | £0.00 | Available in 14-21 days | ||
| 28b | BA.50.0001.23 | controller-E110S-45km/h | 1 | £224.28 | Available in 14-21 days | ||
| 28c | BA.50.0001.24 | controller-E110S-25km/h | 1 | £0.00 | Available in 14-21 days | ||
| 29 | 01.12.4993.00 | croos groove-pan head screw M6x12 10.5 | 6 | £0.10 | Available in 14-21 days | ||
| 30 | CA.00.0008.23 | rear carrier | 1 | £35.81 | Available in 14-21 days | ||
| 31 | 01.12.5032.00 | hexagon flange bolt M8x20 | 4 | £0.29 | Available in 14-21 days | ||
| 32 | 01.16.0027.00 | seat cushion lock latch | 1 | £40.90 | Available in 14-21 days | ||
| 33 | 05.06.0019.00 | battery box lock switch | 1 | £15.31 | Available in 14-21 days | ||
| 34 | 05.10.0015.00 | Horn 12V 1.5A | 1 | £10.22 | Available in 14-21 days | ||
| 35 | 01.12.4991.00 | Hexagon flange bolt M6*12 | 1 | £0.14 | Available in 14-21 days |
