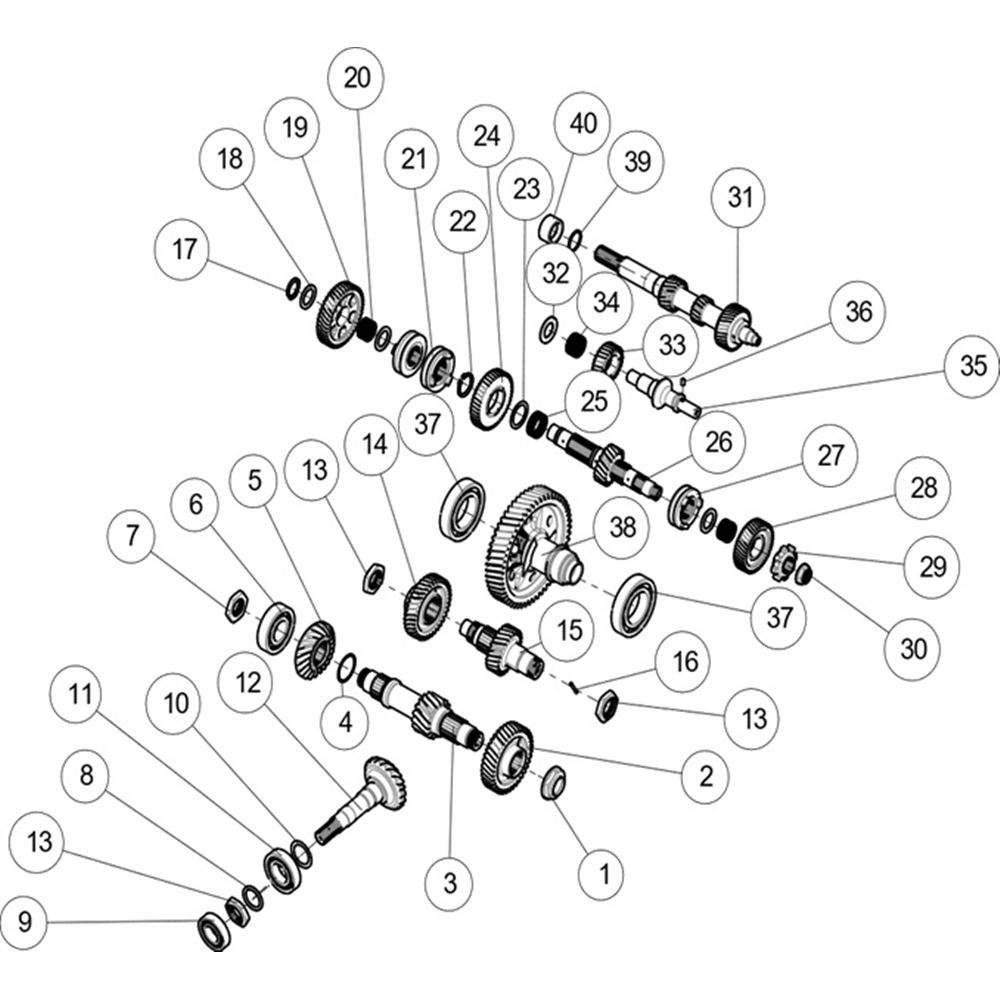

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | E02F24007001 | NUT M30�1.5 | 1 | £2.98 | Available in 14-21 days | ||
| 2 | E02F24003001 | THREE-STAGE DRIVEN GEAR | 1 | £24.91 | Available in 14-21 days | ||
| 3 | E02F24002001 | FOURTH AXIS | 1 | £73.82 | Available in 14-21 days | ||
| 4 | E02F24004003 | DRIVE GEAR ADJUSTMENT PAD 42�48�0.6 | 1 | £0.48 | Available in 14-21 days | ||
| 5 | E02F24001001 | DRIVING BEVEL GEAR | 1 | £71.90 | Available in 14-21 days | ||
| 6 | GBT000276020 | BEARING 6305 | 1 | £38.74 | Available in 14-21 days | ||
| 7 | E02F24006001 | NUT M30�1.5-LH | 1 | £2.98 | Available in 14-21 days | ||
| 8 | E02F26003001 | DRIVEN BEVEL GEAR SHAFT ENCLOSURE | 1 | £0.48 | Available in 14-21 days | ||
| 9 | GBT000276009 | BEARING 6206 | 1 | £17.38 | Available in 14-21 days | ||
| 10 | E02F26002003 | DRIVEN GEAR ADJUSTMENT PAD 35�48�0.5 | 1 | £0.43 | Available in 14-21 days | ||
| 11 | GBT000276010 | BEARING 6207 | 1 | £13.73 | Available in 14-21 days | ||
| 12 | E02F26001001 | DRIVEN BEVEL GEAR SHAFT | 1 | £108.34 | Available in 14-21 days | ||
| 13 | E02F23003001 | NUT M33�1.5 | 3 | £3.17 | Available in 14-21 days | ||
| 14 | E02F23002001 | SECONDARY DRIVEN BEVEL GEAR | 1 | £23.33 | Available in 14-21 days | ||
| 15 | E02F23001001 | TRIAXIAL | 1 | £56.54 | Available in 14-21 days | ||
| 16 | GBT000309003 | NEEDLE ROLLER P4�29.8 | 1 | £0.29 | Available in 14-21 days | ||
| 17 | E02F22012002 | CIRCLIP 28�2.5 | 1 | £0.43 | Available in 14-21 days | ||
| 18 | E02F22008002 | WASHER 28�40�2.5 | 3 | £0.43 | Available in 14-21 days | ||
| 19 | E02F22003001 | L GEAR DRIVEN BEVEL | 1 | £20.11 | Available in 14-21 days | ||
| 20 | E02F22013002 | NEEDLE ROLLER BEARING K28�33�17 | 2 | £2.98 | Available in 14-21 days | ||
| 21 | E02F22006001 | R/L GEAR COUPLING SLEEVE | 2 | £12.96 | Available in 14-21 days | ||
| 22 | D01P21207001 | CIRCLIP 35�2.5 | 1 | £0.62 | Available in 14-21 days | ||
| 23 | E02F22009001 | SPACER 35�46�1.5 | 1 | £0.48 | Available in 14-21 days | ||
| 24 | E02F22004001 | R GEAR DRIVEN BEVEL | 1 | £22.99 | Available in 14-21 days | ||
| 25 | E02F22011001 | NEEDLE ROLLER BEARING K35�40�13 | 1 | £3.46 | Available in 14-21 days | ||
| 26 | E02F22001001 | COUNTERSHAFT | 1 | £62.78 | Available in 14-21 days | ||
| 27 | E02F22007001 | H GEAR ENGAGEMENT SLEEVE | 1 | £12.43 | Available in 14-21 days | ||
| 28 | E02F22002002 | H GEAR DRIVEN GEAR | 1 | £23.95 | Available in 14-21 days | ||
| 29 | E02F22005001 | PARKING GEAR | 1 | £14.35 | Available in 14-21 days | ||
| 30 | F01F20403001 | NUT M22�1 | 1 | £1.73 | Available in 14-21 days | ||
| 31 | E02F21001002 | MAIN SHAFT | 1 | £93.02 | Available in 14-21 days | ||
| 32 | E02F27003001 | WASHER 26�44�3 | 1 | £0.48 | Available in 14-21 days | ||
| 33 | E02F27002001 | REVERSE GEAR IDLER | 1 | £20.11 | Available in 14-21 days | ||
| 34 | E02F22010001 | NEEDLE BEARING K30�35�17 | 1 | £3.17 | Available in 14-21 days | ||
| 35 | E02F27001001 | REVERSE GEAR IDLER SHAFT | 1 | £17.23 | Available in 14-21 days | ||
| 36 | GBT001192001 | CYLINDRICAL PIN 6�10 | 1 | £0.29 | Available in 14-21 days | ||
| 37 | GBT000276025 | DEEP GROOVE BALL BEARINGS 6211 | 2 | £29.95 | Available in 14-21 days | ||
| 38 | E02F25001001 | REAR AXLE OUTPUT GEAR | 1 | £92.98 | Available in 14-21 days | ||
| 39 | E02E10003001 | O-RING SEAL 31�2.5 | 1 | £0.38 | Available in 14-21 days | ||
| 40 | E02E10002001 | CVT DRIVEN WHEEL BUSHING | 1 | £4.32 | Available in 14-21 days |
