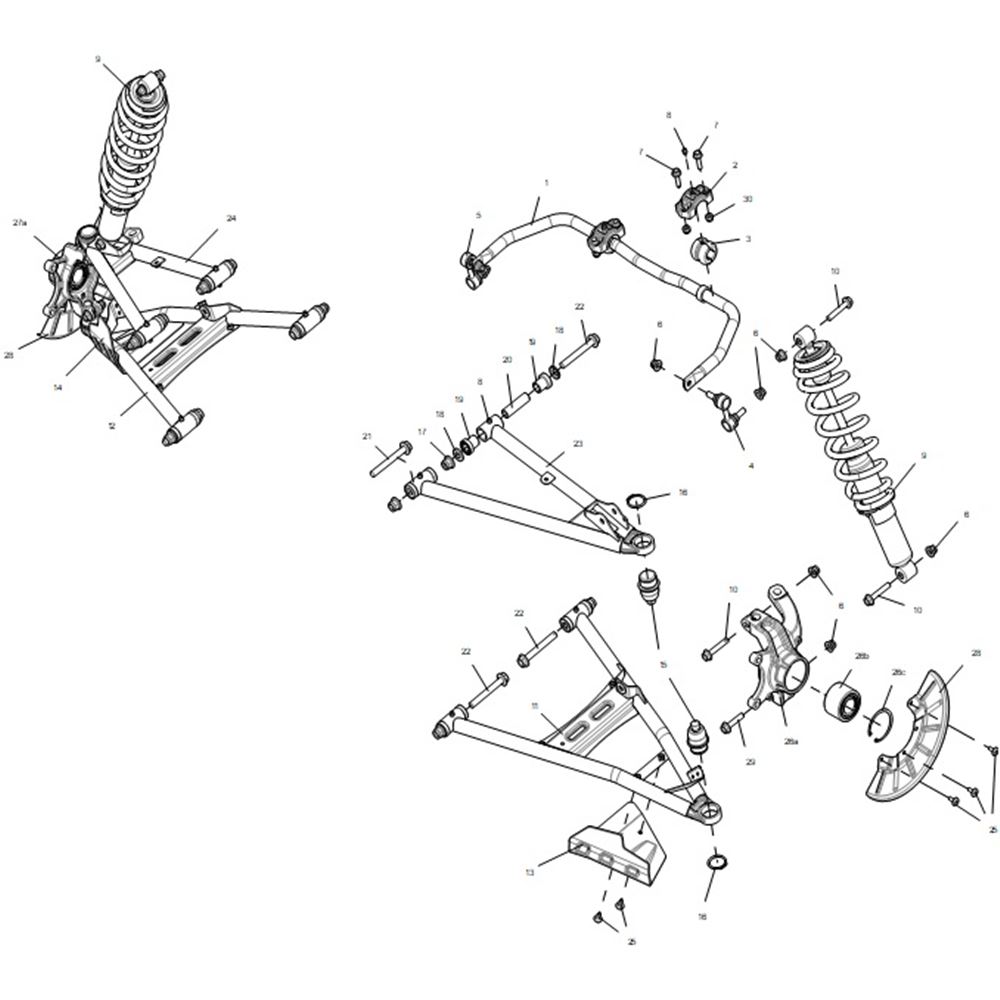

Spare Parts » Segway Fugleman UT10X » Frame Parts » FRONT SUSPENSION ASSY
Image RefPart CodeItem NameFitted QtyPriceOrder QtyStock
1U01D16100002FRONT BALANCE BAR ASSY1£51.74
Available in 14-21 days
2U01D26002001REAR SWAY BAR MOUNTING BRACKET2£12.96
Available in 14-21 days
3U01D16001001FRONT BALANCE BAR BUFFER BLOCK2£3.79
Available in 14-21 days
4U01D16200001FL BALANCE BAR BALL PIN1£26.93
Available in 14-21 days
5U01D16300001FR BALANCE BAR BALL PIN1£26.93
Available in 14-21 days
6GBT061832001NUT M10�1.2512£0.29
Available in 14-21 days
7GBT005789017HEXAGON FLANGE BOLT M8�304£0.29
Available in 14-21 days
8DIN003405001GLIB M610£0.29
Available in 14-21 days
9U01D15000001U01_FRONT SHOCK ABSORBER_RED2£209.81
Available in 14-21 days
9U01D15000002U02_FRONT SHOCK ABSORBER_GREEN2£209.81
Available in 14-21 days
9U01D15000003U03_FRONT SHOCK ABSORBER_MATTE BLACK2£209.81
Available in 14-21 days
10GBT005789032HEXAGON FLANGE BOLT M10�1.25�556£0.53
Available in 14-21 days
11U01D13100003FL LOWER A-ARM (RED)1£113.57
Available in 14-21 days
11U01D13100004FL LOWER A-ARM (GREEN)1£113.57
Available in 14-21 days
11U01D13100005FL LOWER A-ARM (BLACK)1£113.57
Available in 14-21 days
12U01D14100003FR LOWER A-ARM (RED)1£113.57
Available in 14-21 days
12U01D14100004FR LOWER A-ARM (GREEN)1£113.57
Available in 14-21 days
12U01D14100005FR LOWER A-ARM (BLACK)1£113.57
Available in 14-21 days
13U01H12900001FL LOWER A-ARM GUARD1£1.73
Available in 14-21 days
14U01H13100001FR LOWER A-ARM GUARD1£1.73
Available in 14-21 days
15U01D11200001KING PIN ASSEMBLY4£20.64
Available in 14-21 days
16GBT000894004CIRCLIP 344£0.14
In Stock
17GBT061832010NUT M12�1.258£0.38
Available in 14-21 days
18U09D20008001A- ARM DUST COVER16£0.29
Available in 14-21 days
19U09D20006001A- ARM BUSHING16£0.72
In Stock
20U09D10001001A- ARM SLEEVE8£2.11
Available in 14-21 days
21GBT005789104BOLT M12�1.25�952£1.92
Available in 14-21 days
22GBT005789103BOLT M12�1.25�906£1.92
Available in 14-21 days
23U01D11100003FL UPPER A- ARM (RED)1£98.98
Available in 14-21 days
23U01D11100004FL UPPER A- ARM (GREEN)1£98.98
Available in 14-21 days
23U01D11100005FL UPPER A- ARM (BLACK)1£98.98
Available in 14-21 days
24U01D12100003FR UPPER A- ARM (RED)1£98.98
Available in 14-21 days
24U01D12100004FR UPPER A- ARM (GREEN)1£98.98
Available in 14-21 days
24U01D12100005FR UPPER A- ARM (BLACK)1£98.98
Available in 14-21 days
25T03000007002HEXAGON SOCKET MUSHROOM HEAD SCREW10£0.29
Available in 14-21 days
26U01D10010001FL KNUCKLE COMPLETE ASSY1£192.29
Available in 14-21 days
26aU01D10011001FL KNUCKLE1£131.33
Available in 14-21 days
26bJBT010238002HUB BEARING(DAC3006342-2ZC1)1£31.78
Available in 14-21 days
26cGBT000893002CIRCLIP 631£0.48
In Stock
27U01D10020001FR KNUCKLE COMPLETE ASSY1£192.29
Available in 14-21 days
27aU01D10021001FR KNUCKLE1£131.33
Available in 14-21 days
28U01D10001002BRAKE ROTOR DUST SHIELD2£10.37
Available in 14-21 days
29GBT005789030BOLT M10�1.25�452£0.58
Available in 14-21 days
30GBT008892004NUT M84£0.19
Available in 14-21 days
