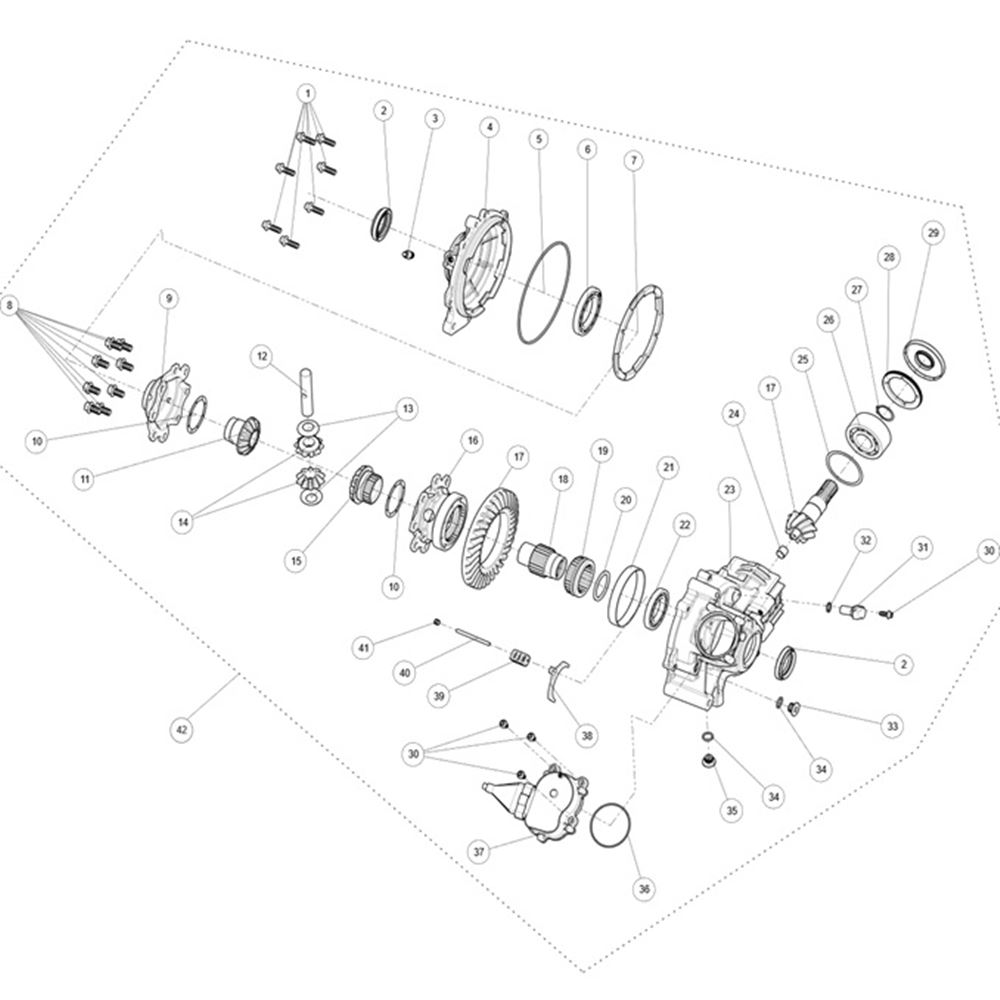

FRONT AXLE ASSY
FRONT AXLE ASSY
FRONT AXLE ASSY

FRONT AXLE ASSY

Spare Parts » Segway Fugleman UT10X » Engine Parts » FRONT AXLE ASSY
Image RefPart CodeItem NameFitted QtyPriceOrder QtyStock
1Q01F40201001HEXAGON FLANGE BOLT M8�257£0.62
Available in 14-21 days
2D02P22202001OIL SEAL 38�55�72£6.91
Available in 14-21 days
3Q01F41300001BREATHING JOINT1£4.46
Available in 14-21 days
4Q03F40200002FRONT AXLE END COVER1£42.14
Available in 14-21 days
5Q01F40500001RECTANGULAR GASKET1£3.41
Available in 14-21 days
6GBT000276038BEARING 160101£14.35
Available in 14-21 days
7Q01F40400001LIMITING LINER1£2.98
Available in 14-21 days
8Q03F30800001BOLT M10�� 1.0� 188£1.01
Available in 14-21 days
9Q03F30200001DIFFERENTIAL COVER1£52.70
Available in 14-21 days
10Q01R31600001AXLE BEVEL GASKET(0.8)1£0.96
Available in 14-21 days
10Q01R31600002AXLE BEVEL GASKET(1.0)1£0.96
Available in 14-21 days
10Q01R31600003AXLE BEVEL GASKET(1.2)1£0.96
Available in 14-21 days
11Q03F30600000Half Shaft Bevel Gear ? assembly1£48.05
Available in 14-21 days
12Q03F30300001Planetary gear shaft V1£8.69
Available in 14-21 days
13Q01R31700003PLANETARY GEAR GASKET2£1.06
Available in 14-21 days
14Q01R30900003Planetary teeth1£10.85
Available in 14-21 days
15Q03F30700001Half shaft bevel gear II1£55.58
Available in 14-21 days
16Q03F30100001DIFFERENTIAL HOUSING1£115.01
Available in 14-21 days
17Q01F10100000DRIVE&DRIVEN BEVEL GEAR KIT1£213.79
Available in 14-21 days
18Q03F30900000AXLE SHAFT ASSY1£42.72
Available in 14-21 days
19Q03F31000001COMBINATION SETS1£29.28
Available in 14-21 days
20Q03F31500001SPACER 40.2�50�31£0.62
Available in 14-21 days
21Q01F41000001BUSHING?(?97)1£9.74
Available in 14-21 days
22GBT000276015BEARING 160081£13.34
Available in 14-21 days
23Q03F40100002FRONT AXLE HOUSING1£110.21
Available in 14-21 days
24Q01F41100001BUSHING?(?15)1£2.16
Available in 14-21 days
25Q01F10200001DRIVE BEVEL GEAR SHIMS(0.3)1£1.15
Available in 14-21 days
25Q01F10200002DRIVE BEVEL GEAR SHIMS(0.4)1£1.15
Available in 14-21 days
25Q01F10200003DRIVE BEVEL GEAR SHIMS(0.5)1£1.15
Available in 14-21 days
25Q01F10200004DRIVE BEVEL GEAR SHIMS(0.6)1£1.15
Available in 14-21 days
25Q01F10200005DRIVE BEVEL GEAR SHIMS(0.7)1£1.15
Available in 14-21 days
26GBT000296001BEARING 33061£45.50
Available in 14-21 days
27GBT000894012CIRCLIP 301£0.14
Available in 14-21 days
28Q01F41200001NUT M75�1.5�6-LH1£5.76
Available in 14-21 days
29Q03F40700001Oil seal 30�45�6.51£4.18
Available in 14-21 days
30F01000002001BOLT M6�164£0.34
In Stock
31Q01F50300001VEHICLE SPEED SENSOR ASSEMBLY1£35.62
Available in 14-21 days
32Q01F40900001O-RING 12�21£0.10
Available in 14-21 days
33F02C10008001PLUG M141£1.15
Available in 14-21 days
34F01G00005001O-RING 13.8�2.52£0.14
In Stock
35F01G00200001SCREW PLUG M14 ASSEMBLY1£2.45
In Stock
36Q03F40300001O-RING 67.9�2.21£0.77
Available in 14-21 days
37Q03F50100001FRONT AXLE SHIFT MOTOR ASSEMBLY1£115.01
Available in 14-21 days
38Q03F31100001SHIFT FORK1£5.90
Available in 14-21 days
39Q03F31200001SLIDING RACK1£1.63
Available in 14-21 days
40Q03F31300001FORK SHAFT 5�651£0.38
Available in 14-21 days
41Q03F31400001HEXAGON SCREW M8�81£0.19
Available in 14-21 days
42Q03F00000002FRONT AXLE ASSY1£732.50
Available in 14-21 days
