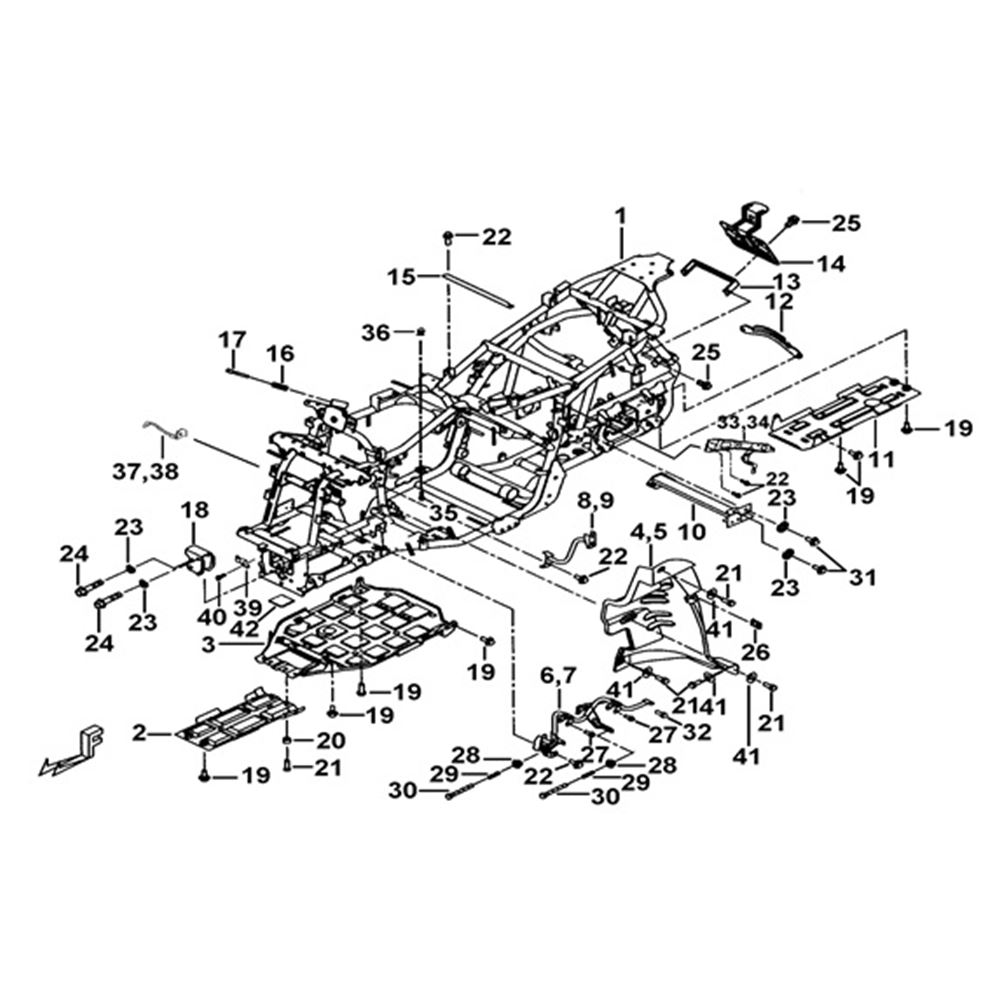

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 1 | 514902 | Main Frame | 1 | £572.40 | Available in 14-21 days | ||
| 2 | 511925A | Protector, Front(Plastic) | 1 | £19.73 | In Stock | ||
| 3 | 519807 | PROTECTOR, REAR(PLASTIC) | 1 | £39.50 | Available in 14-21 days | ||
| 4 | 514935 | Front Internal Fender, Lh | 1 | £32.64 | Available in 14-21 days | ||
| 04A | 511300 | FRONT INTERNAL FENDER, LH. | 1 | £34.85 | Available in 14-21 days | ||
| 5 | 514913 | FRONT INTERNAL FENDER, RH. | 1 | £33.50 | Available in 14-21 days | ||
| 6 | 514906 | Bracket Front Lh, Front Body Cover | 1 | £72.58 | Available in 14-21 days | ||
| 06A | 514938 | BRACKET FRONT LH., FRONT BODY COVER | 1 | £72.58 | Available in 14-21 days | ||
| 7 | 514907 | Bracket Front Rh, Front Body Cover | 1 | £72.58 | Available in 14-21 days | ||
| 07A | 514939 | BRACKET FRONT RH., FRONT BODY COVER | 1 | £72.58 | Available in 14-21 days | ||
| 8 | 514900 | Bracket, Middle Lh, Front Body Cover | 1 | £26.74 | Available in 14-21 days | ||
| 08A | 516061 | BRACKET, MIDDLE LH., FRONT BODY COVER | 1 | £27.36 | Available in 14-21 days | ||
| 9 | 514901 | BRACKET, MIDDLE RH., FRONT BODY COVER | 1 | £26.74 | Available in 14-21 days | ||
| 10 | 511990 | BRACKET | 1 | £65.57 | Available in 14-21 days | ||
| 11 | 511986 | PROTECTOR COVER | 1 | £20.45 | In Stock | ||
| 12 | 511995 | ENHANCING PLATE | 1 | £13.68 | In Stock | ||
| 13 | 514914 | Fixture, Number-Plate | 1 | £18.58 | Available in 14-21 days | ||
| 14 | 511991 | BRACKET ASSY., NUMBER-PLATE | 1 | £28.13 | Available in 14-21 days | ||
| 15 | 511950 | SEAT STEADY, FRONT | 1 | £8.30 | Available in 14-21 days | ||
| 16 | 511981 | SPRING, STEERING LOCK | 1 | £0.82 | Available in 14-21 days | ||
| 17 | 511977 | PIN, STEERING LOCK | 1 | £8.59 | Available in 14-21 days | ||
| 18 | 511992 | BRACKET | 1 | £15.98 | Available in 14-21 days | ||
| 19 | S25602 | BOLT M6X16L | 13 | £0.82 | In Stock | ||
| 20 | GA554BS02 | SPACER 6.5*5.8 | 2 | £0.29 | In Stock | ||
| 21 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 10 | £0.86 | In Stock | ||
| 22 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 6 | £0.29 | In Stock | ||
| 23 | GA556WS06 | WASHER, SPRING 10X18X2.5 | 6 | £0.29 | In Stock | ||
| 24 | S20017 | SH. FLANGE BOLT M10X60L | 2 | £2.02 | In Stock | ||
| 25 | S21809 | BOLT M8X1.25X18L | 4 | £0.72 | In Stock | ||
| 26 | N32601 | NUT, SPRING | 2 | £0.82 | Available in 14-21 days | ||
| 27 | S99617 | BOLT, FLANGE M6X42 | 4 | £2.50 | Available in 14-21 days | ||
| 28 | N04501 | NUT, PLASTIC M5 | 4 | £2.11 | Available in 14-21 days | ||
| 29 | 511725 | SPRING | 4 | £0.86 | Available in 14-21 days | ||
| 30 | S46505 | BOLT | 4 | £0.48 | Available in 14-21 days | ||
| 31 | S21008 | BOLT M10X20 | 4 | £2.11 | In Stock | ||
| 32 | S50507 | SCREW, TAPPING M5X12 | 2 | £0.29 | Available in 14-21 days | ||
| 33 | 511959 | BRACKET LH., REAR BODY COVER | 1 | £31.10 | Available in 14-21 days | ||
| 34 | 511960 | BRACKET RH., REAR BODY COVER - Before 012354 | 1 | £31.10 | Available in 14-21 days | ||
| 35 | S99004 | BOLT M10X1.25X50L | 1 | £2.21 | In Stock | ||
| 36 | GA501NT01 | NUT, FLANGE M10 | 1 | £0.43 | In Stock | ||
| 37 | 512477 | BRACKET LH., FIRST HOUSING | 1 | £15.55 | Available in 14-21 days | ||
| 38 | 512478 | BRACKET RH., FIRST HOUSING | 1 | £15.55 | Available in 14-21 days | ||
| 39 | 511963 | BRACKET | 1 | £4.37 | Available in 14-21 days | ||
| 40 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 1 | £0.29 | In Stock | ||
| 41 | GA556WS02 | WASHER 6X16X4 | 8 | £0.62 | In Stock | ||
| 42 | GF514TH02 | CUSHION | 2 | £0.62 | Available in 14-21 days |
