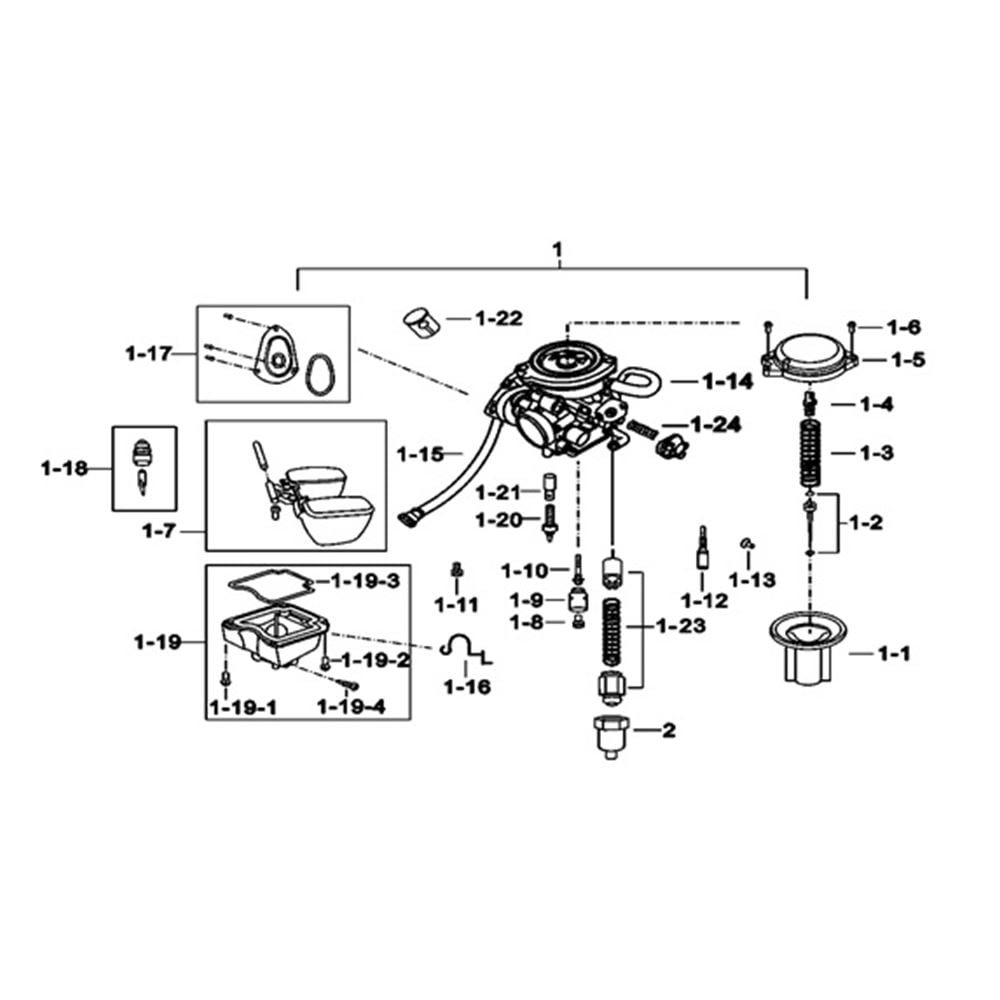

![Carburetor](/upload/cache/89ca480ffe474f6888748c85d075ae5e_pad_550x550.jpg)
Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
---|---|---|---|---|---|---|---|
1 | 925189 | Carburetor Assy | 1 | £292.80 | Available in 14-21 days | ||
01-1 | 924744 | Piston Valve | 1 | £25.44 | Available in 14-21 days | ||
01-2 | 924745 | Needle Set. Jet(Jn) | 1 | £20.45 | In Stock | ||
01-3 | 924746 | Spring | 1 | £3.74 | In Stock | ||
01-4 | 924747 | Helder | 1 | £2.26 | In Stock | ||
01-5 | 924749 | Top Comp | 1 | £16.13 | In Stock | ||
01-6 | 924748 | Screw | 2 | £2.02 | In Stock | ||
01-7 | 924750 | Float Set | 1 | £35.14 | Available in 14-21 days | ||
01-8 | 924751 | Main Jet(Mj) | 1 | £8.93 | In Stock | ||
01-9 | 924761 | Ring | 1 | £10.42 | In Stock | ||
2 | 925284 | Fender, Choke | 1 | £4.03 | In Stock | ||
1-10 | 924762 | Hold, Main Jet | 1 | £8.16 | In Stock | ||
1-11 | 924906 | Starting Jet (Gs1 35) | 1 | £21.12 | In Stock | ||
1-12 | 924753 | Idle Jet(Pj) | 1 | £34.08 | In Stock | ||
1-13 | 924754 | Screw | 1 | £1.25 | In Stock | ||
1-14 | 924755 | Hose | 1 | £10.03 | Available in 14-21 days | ||
1-15 | 924756 | Cable Adjuster Assy | 1 | £37.15 | In Stock | ||
1-16 | 924757 | Clip | 1 | £3.84 | Available in 14-21 days | ||
1-17 | 924758 | Throttle Valve Cover | 1 | £17.86 | Available in 14-21 days | ||
1-18 | 924763 | Valve Seat Assy | 1 | £35.95 | Available in 14-21 days | ||
1-19 | 925225 | Cover, Float Chamber | 1 | £44.45 | In Stock | ||
1-19-1 | 924759 | Screw | 3 | £1.54 | In Stock | ||
1-19-2 | 924760 | Screw | 1 | £0.77 | In Stock | ||
1-19-3 | 924831 | O-Ring | 1 | £1.92 | Available in 14-21 days | ||
1-19-4 | 924832 | Screw | 1 | £2.30 | In Stock | ||
1-20 | 924902 | Heater 30W | 1 | £15.98 | In Stock | ||
1-21 | 924903 | Terminal | 1 | £1.25 | Available in 14-21 days | ||
1-22 | 924899 | Cable Stud | 1 | £5.57 | In Stock | ||
1-23 | 925404 | Manual Choke | 1 | £34.61 | In Stock | ||
1-24 | 925210 | Spring L16.8 | 1 | £5.95 | In Stock |
