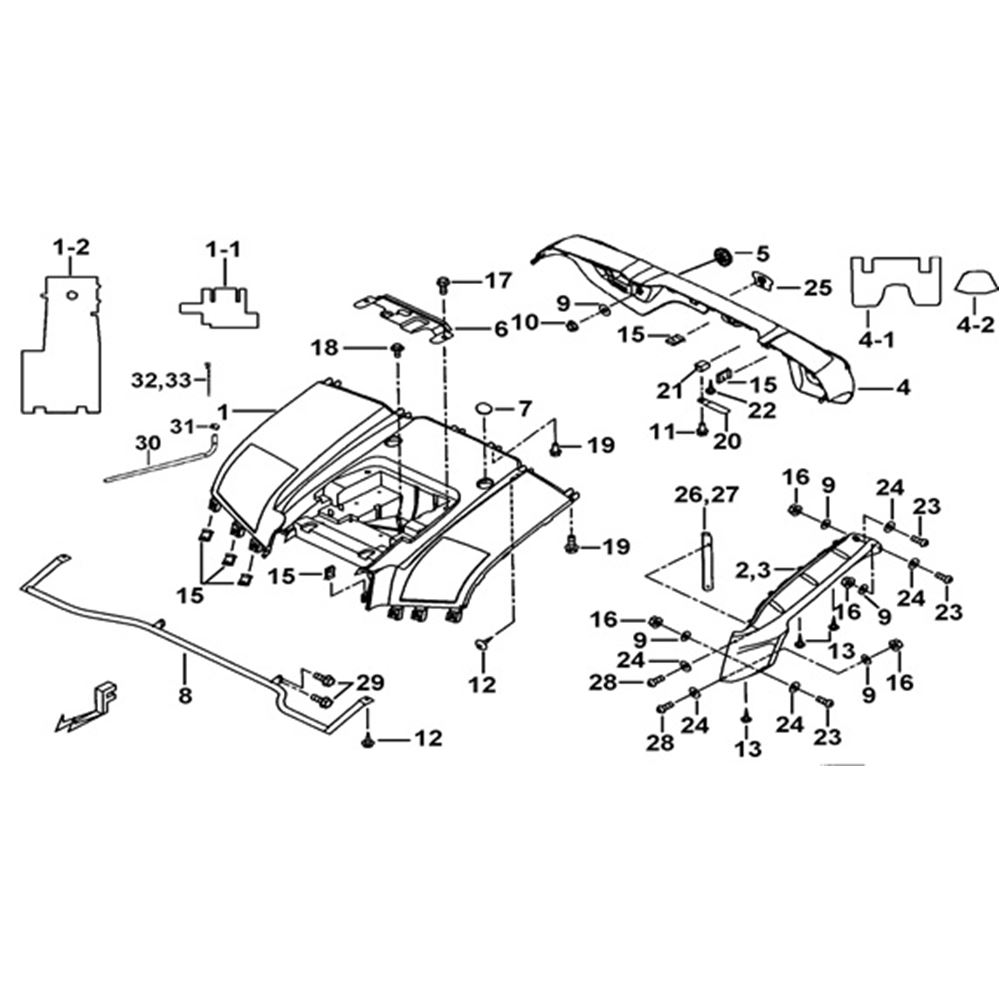

| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|
| 01 | 514498X | REAR BODY COVER COMP.(INCLUDING HEAT INSULATION) | 1 | £360.00 | Available in 14-21 days | ||
| 01-1 | 518014 | Heat Insulation | 1 | £17.57 | Available in 14-21 days | ||
| 01-2 | 518011 | HEAT INSULATION | 1 | £70.32 | Available in 14-21 days | ||
| 02 | 514446 | REAR FENDER SIDE RAIL, LH. | 1 | £23.42 | Available in 14-21 days | ||
| 03 | 514447 | REAR FENDER SIDE RAIL, RH. | 1 | £23.42 | Available in 14-21 days | ||
| 04 | 514481K | Rear Bumper(Including Heat Insulation) | 1 | £76.80 | Available in 14-21 days | ||
| 04-1 | 518012 | Heat Insulation | 1 | £11.71 | Available in 14-21 days | ||
| 04-2 | 518013 | Heat Insulation | 1 | £3.94 | Available in 14-21 days | ||
| 05 | 514409 | REFLECTOR ASSY., SIDE(REAR)(RED) | 2 | £8.50 | Available in 14-21 days | ||
| 06 | 514413 | Battery Fixed(Plate) | 1 | £16.75 | In Stock | ||
| 07 | 512425 | CARRIER COVER | 2 | £11.52 | Available in 14-21 days | ||
| 08 | 514405 | BRKT, REAR BODY COVER | 1 | £38.78 | In Stock | ||
| 09 | W99605 | WASHER M6 | 10 | £0.24 | In Stock | ||
| 10 | GA554NT04 | NUT, FLANGE M6xP1.0 - (FOR PLASTIC CARRIER) | 2 | £0.24 | In Stock | ||
| 11 | GA555SC05 | BOLT, OUTLET M6X1.0X16L | 2 | £0.29 | In Stock | ||
| 12 | S57501 | SCREW,OVAL HEAD, FLANGE M5X16 | 4 | £0.29 | In Stock | ||
| 13 | GA552SC11 | SCREW, TAPPING M4X16 | 8 | £0.24 | In Stock | ||
| 15 | N32601 | NUT, SPRING | 12 | £0.82 | Available in 14-21 days | ||
| 16 | N10603 | NUT M6 | 8 | £0.19 | In Stock | ||
| 17 | S20814 | BOLT, FLANGE M8X1.25X20L | 2 | £1.06 | In Stock | ||
| 18 | S25602 | BOLT M6X16L | 1 | £0.82 | In Stock | ||
| 19 | S07601 | BOLT, FLANGE M6X16 (Dark Green) | 4 | £0.86 | In Stock | ||
| 20 | 514410 | CLAMP | 2 | £1.06 | In Stock | ||
| 21 | 514411 | CONNECTOR | 2 | £1.63 | Available in 14-21 days | ||
| 22 | S50402 | SCREW,TAPPING M4X10 | 2 | £0.29 | In Stock | ||
| 23 | S72605 | BOLT, HEX HEAD M6X16 (Silver White) | 6 | £0.96 | Available in 14-21 days | ||
| 24 | GA555WS02 | WASHER 6X16X1.5 | 10 | £0.19 | Available in 14-21 days | ||
| 25 | 514418 | COVER | 1 | £1.92 | Available in 14-21 days | ||
| 26 | 512466 | PLATE (LH.) | 1 | £8.50 | Available in 14-21 days | ||
| 27 | 512467 | PLATE (RH.) | 1 | £8.50 | Available in 14-21 days | ||
| 28 | S72601 | BOLT, HEX HEAD M6X20 | 4 | £0.62 | In Stock | ||
| 29 | S20611 | BOLT, HEX HEAD M6X20 | 4 | £0.29 | In Stock | ||
| 30 | 514467 | DRAIN HOSE | 1 | £22.27 | Available in 14-21 days | ||
| 31 | R40002 | CLIP | 1 | £4.03 | In Stock | ||
| 32 | 518739 | CLAMP L200 | 1 | £0.24 | In Stock | ||
| 33 | 518739 | CLAMP L200 | 2 | £0.24 | In Stock |
