| Image Ref | Part Code | Item Name | Fitted Qty | Price | Order Qty | Stock | |
|---|---|---|---|---|---|---|---|

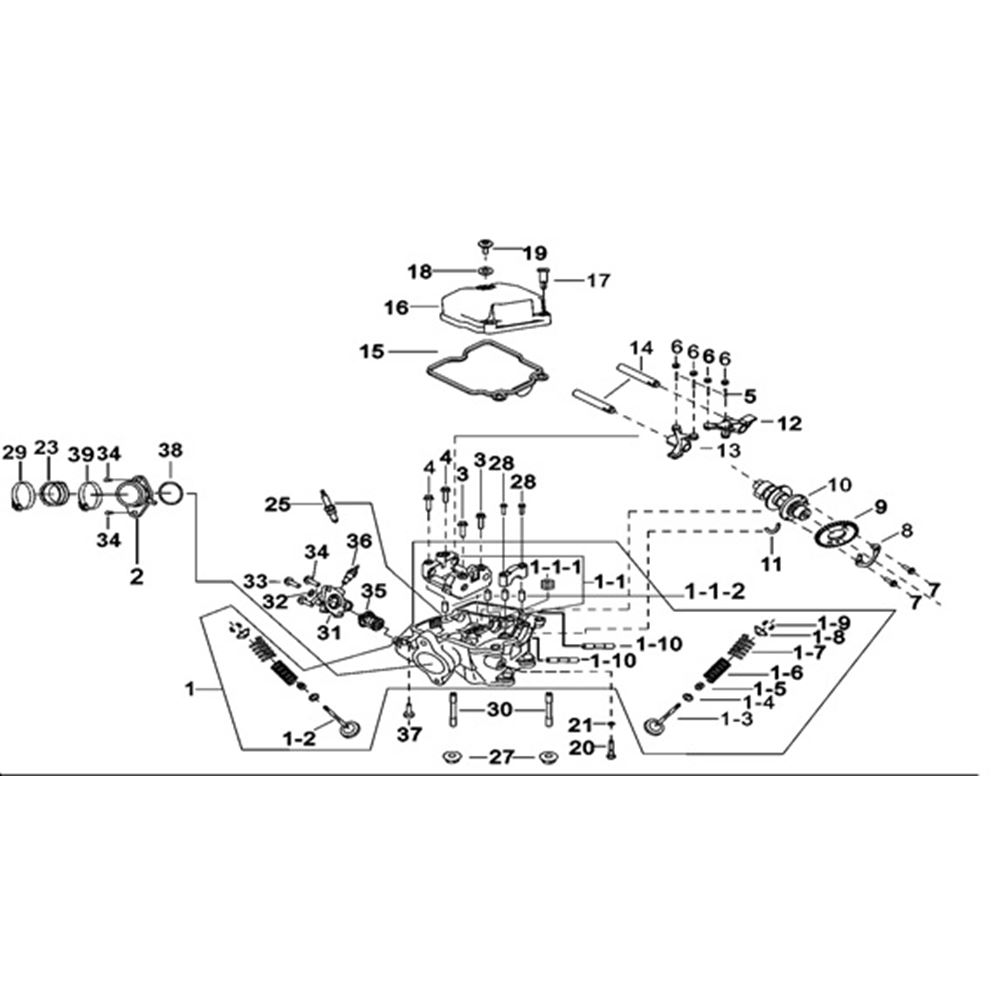

| 01 | D9900003 | Head Assy, Cylinder | 1 | £295.20 | Available in 14-21 days | ||
| 01-1 | D9900002A | Head Comp, Cylinder | 1 | £256.80 | Available in 14-21 days | ||
| 01-1-1 | 927109 | SCREW | 1 | £7.44 | Available in 14-21 days | ||
| 01-1-2 | P40803 | PIN, DOWEL | 4 | £1.68 | Available in 14-21 days | ||
| 01-10 | S95808 | STUD M8X38 | 2 | £1.73 | Available in 14-21 days | ||
| 01-1A | 927330B | Head Comp, Cylinder | 1 | £360.00 | Available in 14-21 days | ||
| 01-2 | 924020 | Valve, Intake | 2 | £23.76 | In Stock | ||
| 01-3 | 924021 | Valve, Exhaust | 2 | £35.28 | In Stock | ||
| 01-4 | 924023 | Lower Cup | 4 | £5.18 | In Stock | ||
| 01-5 | 924024 | SEAL, VALVE STEM | 4 | £5.18 | In Stock | ||
| 01-6 | 924025 | Spring, Valve, Inner | 4 | £3.89 | In Stock | ||
| 01-7 | 924026 | Spring, Valve, Outer | 4 | £5.47 | Available in 14-21 days | ||
| 01-8 | 924027 | Upper Cup | 4 | £5.18 | Available in 14-21 days | ||
| 01-9 | 400093 | COTTER, VALVE | 8 | £0.82 | In Stock | ||
| 01A | 927341 | Head Assy, Cylinder | 1 | £300.00 | In Stock | ||
| 02 | D9900007 | Intake Pipe | 1 | £51.84 | In Stock | ||
| 03 | S20625 | BOLT, FLANGE M6X60 | 2 | £1.06 | In Stock | ||
| 03A | 927325 | Bolt, Flange M8X60 | 2 | £1.92 | In Stock | ||
| 04 | S20615 | Bolt, Flange M6X50 | 2 | £0.67 | Available in 14-21 days | ||
| 04A | S20625 | BOLT, FLANGE M6X60 | 2 | £1.06 | In Stock | ||
| 05 | S06501 | Bolt,Adjusting | 4 | £1.78 | Available in 14-21 days | ||
| 06 | N03501 | Nut, Hex | 4 | £0.77 | In Stock | ||
| 07 | S99605 | BOLT M6X10 | 2 | £0.29 | In Stock | ||
| 08 | 924031 | FIXING PLATE | 1 | £1.25 | In Stock | ||
| 09 | 924036 | Timing Sprocket 34T Gb-69 | 1 | £16.37 | Available in 14-21 days | ||
| 10 | 924994 | Cam Shaft Set | 1 | £202.37 | Available in 14-21 days | ||
| 11 | 924032 | �C� RING | 1 | £4.51 | In Stock | ||
| 12 | 924033 | Arm, Valve Rocker, Ex | 1 | £37.58 | Available in 14-21 days | ||
| 13 | 924034 | Arm, Valve Rocker, In | 1 | £37.58 | Available in 14-21 days | ||
| 14 | 924035 | Pin, Rocker Arm Axle | 2 | £10.61 | In Stock | ||
| 14A | 927333 | Pin, Rocker Arm Axle | 2 | £18.43 | Available in 14-21 days | ||
| 15 | 924016 | Gasket, Cylinder Head | 1 | £12.38 | Available in 14-21 days | ||
| 16 | 924017 | Cover, Head Cylinder | 1 | £40.03 | In Stock | ||
| 17 | 924019 | BOLT M7X31 | 2 | £1.82 | In Stock | ||
| 18 | 924297 | Gasket | 1 | £3.12 | In Stock | ||
| 19 | 924018 | Bolt M7X23.5 | 1 | £1.82 | Available in 14-21 days | ||
| 20 | S96806 | BOLT, CAM CHAIN TENSIONER | 1 | £2.93 | In Stock | ||
| 21 | W99818 | WASHER | 1 | £0.34 | In Stock | ||
| 23 | 927312-S | Rubber Tube(Contain Clip) | 1 | £34.56 | Available in 14-21 days | ||
| 23A | 927312 | Rubber Tube | 1 | £7.30 | Available in 14-21 days | ||
| 25 | 924090 | Spark Plug (Ngk Cr7E) | 1 | £30.72 | Available in 14-21 days | ||
| 27 | N10801 | NUT, FLANGE 8mm | 2 | £0.67 | In Stock | ||
| 28 | S20616 | BOLT, FLANGE M6X40 | 2 | £0.77 | Available in 14-21 days | ||
| 29 | R66004 | CLAMP ?60X10t | 1 | £10.75 | Available in 14-21 days | ||
| 30 | S95807 | Stud | 2 | £3.17 | Available in 14-21 days | ||
| 31 | 924088 | Thermostat Cover | 1 | £22.32 | In Stock | ||
| 32 | 925115 | WASHER 6X12.5X1.15t | 1 | £0.82 | Available in 14-21 days | ||
| 33 | S96605 | BOLT, FLANGE | 1 | £0.77 | Available in 14-21 days | ||
| 34 | S24616 | BOLT, FLANGE M6X20 | 4 | £0.67 | Available in 14-21 days | ||
| 35 | 924294 | THERMOSTAT COMP. | 1 | £56.93 | In Stock | ||
| 36 | 924089 | THERMISTOR M6X12L | 1 | £30.48 | Available in 14-21 days | ||
| 37 | S77601 | BOLT, FLANGE | 1 | £0.86 | In Stock | ||
| 38 | 924076 | O-Ring 2X41.5 | 1 | £3.12 | In Stock | ||
| 39 | R66004 | CLAMP ?60X10t | 1 | £10.75 | Available in 14-21 days | ||
| 39A | 926120 | CLIP | 1 | £11.90 | Available in 14-21 days |
